Understanding Population Data (Exposure)

admin_id = "ITF2"  # Molise, Italy

import xarray as xr
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import geopandas as gpd
import regionmask
from pathlib import Path
import rioxarray as rxr
import os
import re
#!pip install folium
import folium
from folium import plugins

# Set up data directories
main_dir = Path("../")
data_dir = main_dir / "data"
ghs_pop_dir = data_dir / "population" / "GHS_POP"
ghs_wup_dir = data_dir / "population" / "GHS_WUP_POP"
output_dir = data_dir / admin_id / "ghs_population"

print(f"Data directories:")
print(f"  GHS-POP: {ghs_pop_dir}")
print(f"  GHS-WUP: {ghs_wup_dir}")
print(f"  Output: {output_dir}")

# Read NUTS shapefiles
regions_dir = data_dir / 'regions'
nuts_shp = regions_dir / 'NUTS_RG_20M_2024_4326' / 'NUTS_RG_20M_2024_4326.shp'
nuts_gdf = gpd.read_file(nuts_shp)

# Select the region of interest
sel_gdf = nuts_gdf[nuts_gdf['NUTS_ID'] == admin_id]
print(f"Region: {sel_gdf['NUTS_NAME'].values[0]} ({admin_id})")
print(f"Country: {sel_gdf['CNTR_CODE'].values[0]}")
lon_min, lat_min, lon_max, lat_max = sel_gdf.geometry.total_bounds

# Create a regionmask from the admin region geometry
admin_mask = regionmask.from_geopandas(sel_gdf, names='NUTS_ID')

# Load CSV files
csv_ghs_pop = output_dir / f"population_ghs_pop_{admin_id}.csv"
csv_ghs_wup = output_dir / f"population_ghs_wup_{admin_id}.csv"

# Read the data
df_ghs_pop = pd.read_csv(csv_ghs_pop)
df_ghs_wup = pd.read_csv(csv_ghs_wup)

print("GHS-POP data:")
print(f"  Years: {df_ghs_pop['year'].min():.0f} - {df_ghs_pop['year'].max():.0f}")
print(f"  Records: {len(df_ghs_pop)}")
print(f"\nGHS-WUP data:")
print(f"  Years: {df_ghs_wup['year'].min():.0f} - {df_ghs_wup['year'].max():.0f}")
print(f"  Records: {len(df_ghs_wup)}")

# Display data
print(f"\nGHS-POP sample:")
(df_ghs_pop)

print(f"\nGHS-WUP sample:")
(df_ghs_wup)

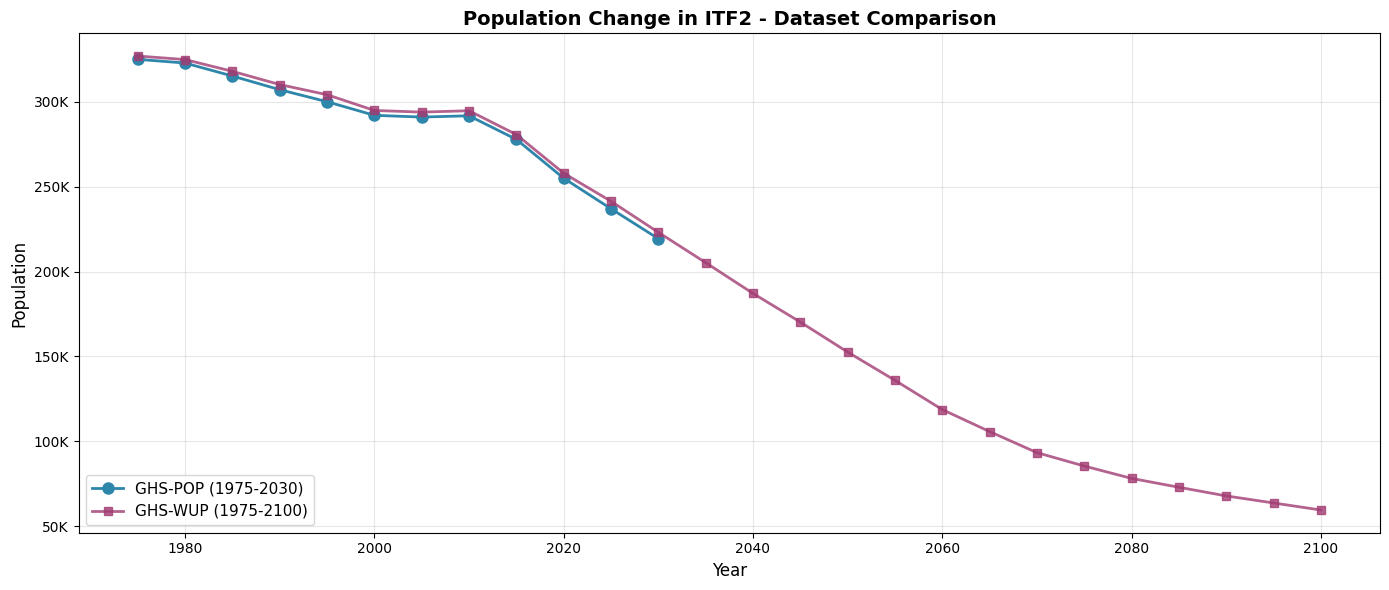

fig, ax = plt.subplots(figsize=(14, 6))

ax.plot(df_ghs_pop['year'], df_ghs_pop['population'],
        marker='o', linewidth=2, markersize=8, label='GHS-POP (1975-2030)', color='#2E86AB')
ax.plot(df_ghs_wup['year'], df_ghs_wup['population'],
        marker='s', linewidth=2, markersize=6, label='GHS-WUP (1975-2100)', color='#A23B72', alpha=0.8)

ax.set_xlabel('Year', fontsize=12)
ax.set_ylabel('Population', fontsize=12)
ax.set_title(f'Population Change in {admin_id} - Dataset Comparison', fontsize=14, fontweight='bold')
ax.legend(fontsize=11, loc='lower left')
ax.grid(True, alpha=0.3)

# Format y-axis
from matplotlib.ticker import FuncFormatter
def millions(x, pos):
    return f'{x/1e6:.1f}M' if x >= 1e6 else f'{x/1e3:.0f}K'
ax.yaxis.set_major_formatter(FuncFormatter(millions))

plt.tight_layout()
plt.show()

from IPython.display import display

# Merge datasets on year for overlapping period
df_comparison = df_ghs_pop.merge(df_ghs_wup, on='year', suffixes=('_pop', '_wup'))

# Calculate differences
df_comparison['difference'] = df_comparison['population_wup'] - df_comparison['population_pop']
df_comparison['percent_diff'] = (df_comparison['difference'] / df_comparison['population_pop']) * 100

# --- Comparison table ---
display_df = (
    df_comparison[['year', 'population_pop', 'population_wup', 'difference', 'percent_diff']]
    .rename(columns={
        'year':           'Year',
        'population_pop': 'GHS-POP',
        'population_wup': 'GHS-WUP',
        'difference':     'Difference (WUP \u2212 POP)',
        'percent_diff':   'Diff (%)',
    })
    .assign(Year=lambda d: d['Year'].astype(int))
    .set_index('Year')
)

display(
    display_df.style
    .format({
        'GHS-POP':                  '{:,.0f}',
        'GHS-WUP':                  '{:,.0f}',
        'Difference (WUP \u2212 POP)': '{:+,.0f}',
        'Diff (%)':                 '{:+.2f}%',
    })
    .background_gradient(subset=['Diff (%)'], cmap='RdYlGn', vmin=-20, vmax=20)
    .set_caption('Dataset Comparison: GHS-POP vs GHS-WUP (1975\u20132030)')
    .set_table_styles([{'selector': 'caption',
                        'props': [('font-weight', 'bold'), ('font-size', '1em')]}])
)

# --- Summary statistics ---
max_diff_row = df_comparison.loc[df_comparison['difference'].abs().idxmax()]
summary_df = pd.DataFrame({
    'Metric': [
        'Mean absolute difference',
        'Mean percentage difference',
        'Largest difference',
    ],
    'Value': [
        f"{df_comparison['difference'].abs().mean():,.0f} people",
        f"{df_comparison['percent_diff'].abs().mean():.2f}%",
        f"{abs(max_diff_row['difference']):,.0f} people in {int(max_diff_row['year'])}",
    ],
}).set_index('Metric')

display(
    summary_df.style
    .set_caption('Summary Statistics')
    .set_table_styles([{'selector': 'caption',
                        'props': [('font-weight', 'bold'), ('font-size', '1em')]}])
)

# Load 2020 data for interactive map
ghs_pop_files = sorted(list(ghs_pop_dir.glob("*/GHS_POP_E*_GLOBE_R2023A_4326_30ss_V1_0.tif")))

# Load GHS-POP 2020
present_year = 2020
ghs_pop_2020_file = [f for f in ghs_pop_files if f"E{present_year}" in f.name]

if ghs_pop_2020_file:
    tif_file = ghs_pop_2020_file[0]
    ds_2020 = rxr.open_rasterio(tif_file)
    # Clip to region
    ds_2020_clipped = ds_2020.sel(x=slice(lon_min, lon_max), y=slice(lat_max, lat_min))
    ds_2020_clipped = ds_2020_clipped.where(ds_2020_clipped >= 0)
    pop_2020 = ds_2020_clipped.squeeze("band", drop=True)

    # Apply mask
    mask_2020 = admin_mask.mask(pop_2020.x, pop_2020.y)
    pop_2020_masked = pop_2020.where(~np.isnan(mask_2020.values))

    print(f"Loaded GHS-POP {present_year} for interactive map")
    print(f"Data shape: {pop_2020_masked.shape}")
    print(f"Value range: {float(pop_2020_masked.min()):.2f} - {float(pop_2020_masked.max()):.2f}")
else:
    print(f"Could not find GHS-POP {present_year} file")

# Create interactive folium map
# Calculate center of region
center_lat = (lat_min + lat_max) / 2
center_lon = (lon_min + lon_max) / 2

# Create base map with a nice satellite/terrain basemap
m = folium.Map(
    location=[center_lat, center_lon],
    zoom_start=9,
    tiles=None  # We'll add custom tiles
)

# Add multiple basemap options
folium.TileLayer('OpenStreetMap', name='OpenStreetMap').add_to(m)
folium.TileLayer(
    tiles='https://server.arcgisonline.com/ArcGIS/rest/services/World_Imagery/MapServer/tile/{z}/{y}/{x}',
    attr='Esri World Imagery',
    name='Satellite',
    overlay=False,
    control=True
).add_to(m)
folium.TileLayer(
    tiles='https://server.arcgisonline.com/ArcGIS/rest/services/World_Topo_Map/MapServer/tile/{z}/{y}/{x}',
    attr='Esri World Topo',
    name='Topographic',
    overlay=False,
    control=True
).add_to(m)

# Add region boundary
folium.GeoJson(
    sel_gdf.geometry,
    name=f'Region {admin_id}',
    style_function=lambda x: {
        'fillColor': 'none',
        'color': 'red',
        'weight': 3,
        'fillOpacity': 0
    }
).add_to(m)

# Add population data as a heatmap overlay
# Convert to numpy array and get coordinates
pop_array = pop_2020_masked.values
y_coords = pop_2020_masked.y.values
x_coords = pop_2020_masked.x.values

# Create heat map data points (sample for performance)
heat_data = []
step = max(1, len(y_coords) // 100)  # Sample every nth point for performance

for i in range(0, len(y_coords), step):
    for j in range(0, len(x_coords), step):
        val = pop_array[i, j]
        if not np.isnan(val) and val > 0:
            heat_data.append([y_coords[i], x_coords[j], float(val)])

# Add heatmap
plugins.HeatMap(
    heat_data,
    name='Population Heatmap',
    min_opacity=0.3,
    max_zoom=13,
    radius=15,
    blur=20,
    gradient={0.4: 'yellow', 0.6: 'orange', 0.8: 'red', 1.0: 'darkred'}
).add_to(m)

# Add layer control
folium.LayerControl().add_to(m)

# Add title
title_html = f'''
<div style="position: fixed;
     top: 10px; left: 50px; width: 400px; height: 60px;
     background-color: white; border:2px solid grey; z-index:9999;
     font-size:16px; padding: 10px; box-shadow: 2px 2px 6px rgba(0,0,0,0.3);">
     <b>Population Distribution {admin_id} ({present_year})</b><br>
     <i>Toggle layers and zoom to explore</i>
</div>
'''
m.get_root().html.add_child(folium.Element(title_html))

# Display map
m

# Load GHS-POP files for selected years
ghs_pop_files = sorted(list(ghs_pop_dir.glob("*/GHS_POP_E*_GLOBE_R2023A_4326_30ss_V1_0.tif")))
print(f"Found {len(ghs_pop_files)} GHS-POP files")

# Load selected years: 1990, 2000, 2010, 2020, 2030
selected_years_pop = [1990, 2000, 2010, 2020, 2030]
pop_data_dict = {}

for year in selected_years_pop:
    matching_files = [f for f in ghs_pop_files if f"E{year}" in f.name]
    if matching_files:
        tif_file = matching_files[0]
        ds = rxr.open_rasterio(tif_file)
        # Clip to region
        ds_clipped = ds.sel(x=slice(lon_min, lon_max), y=slice(lat_max, lat_min))
        ds_clipped = ds_clipped.where(ds_clipped >= 0)  # Remove fill values
        pop_data_dict[year] = ds_clipped.squeeze("band", drop=True)
        print(f"  Loaded {year}: shape {ds_clipped.shape}")

print(f"\nLoaded {len(pop_data_dict)} years of GHS-POP data")

# Load GHS-WUP files for the same years
ghs_wup_files = sorted(list(ghs_wup_dir.glob("*/GHS_WUP_POP_E*_GLOBE_R2025A_4326_30ss_V1_0.tif")))
print(f"Found {len(ghs_wup_files)} GHS-WUP files")

wup_data_dict = {}

for year in selected_years_pop:
    matching_files = [f for f in ghs_wup_files if f"E{year}" in f.name]
    if matching_files:
        tif_file = matching_files[0]
        ds = rxr.open_rasterio(tif_file)
        # Clip to region
        ds_clipped = ds.sel(x=slice(lon_min, lon_max), y=slice(lat_max, lat_min))
        ds_clipped = ds_clipped.where(ds_clipped >= 0)  # Remove fill values
        wup_data_dict[year] = ds_clipped.squeeze("band", drop=True)
        print(f"  Loaded {year}: shape {ds_clipped.shape}")

print(f"\nLoaded {len(wup_data_dict)} years of GHS-WUP data")

# Create region mask (use first available year to create mask)
first_year = selected_years_pop[0]
pop_admin_mask_raw = admin_mask.mask(pop_data_dict[first_year].x, pop_data_dict[first_year].y)

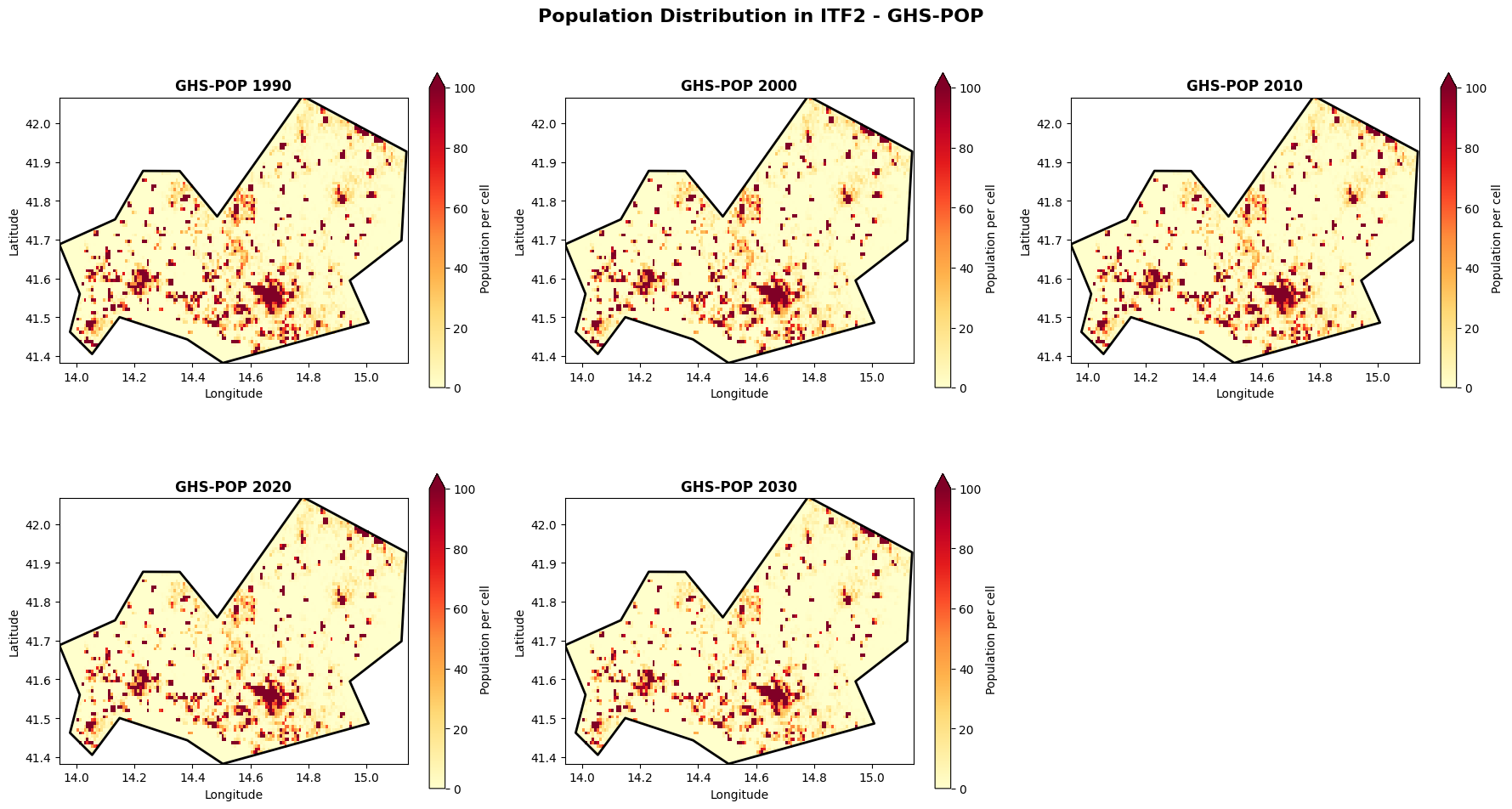

# Plot GHS-POP for selected years
fig, axes = plt.subplots(2, 3, figsize=(18, 10))
axes = axes.flatten()

for idx, year in enumerate(selected_years_pop):
    if year in pop_data_dict:
        # Create mask for this specific year's coordinates
        mask_raw = admin_mask.mask(pop_data_dict[year].x, pop_data_dict[year].y)
        pop_mask = xr.DataArray(
            (~np.isnan(mask_raw.values)).astype(float),
            coords={'y': pop_data_dict[year].y, 'x': pop_data_dict[year].x},
            dims=['y', 'x']
        )

        masked_pop = pop_data_dict[year].where(pop_mask == 1)

        im = masked_pop.plot(
            ax=axes[idx],
            cmap='YlOrRd',
            add_colorbar=True,
            cbar_kwargs={'label': 'Population per cell', 'shrink': 0.8},
            vmin=0,
            vmax=100
        )

        axes[idx].set_title(f'GHS-POP {year}', fontsize=12, fontweight='bold')
        axes[idx].set_xlabel('Longitude')
        axes[idx].set_ylabel('Latitude')
        sel_gdf.boundary.plot(ax=axes[idx], color='black', linewidth=2)

# Remove the last subplot if odd number
if len(selected_years_pop) < 6:
    fig.delaxes(axes[5])

plt.suptitle(f'Population Distribution in {admin_id} - GHS-POP', fontsize=16, fontweight='bold', y=0.98)
plt.tight_layout()
plt.show()

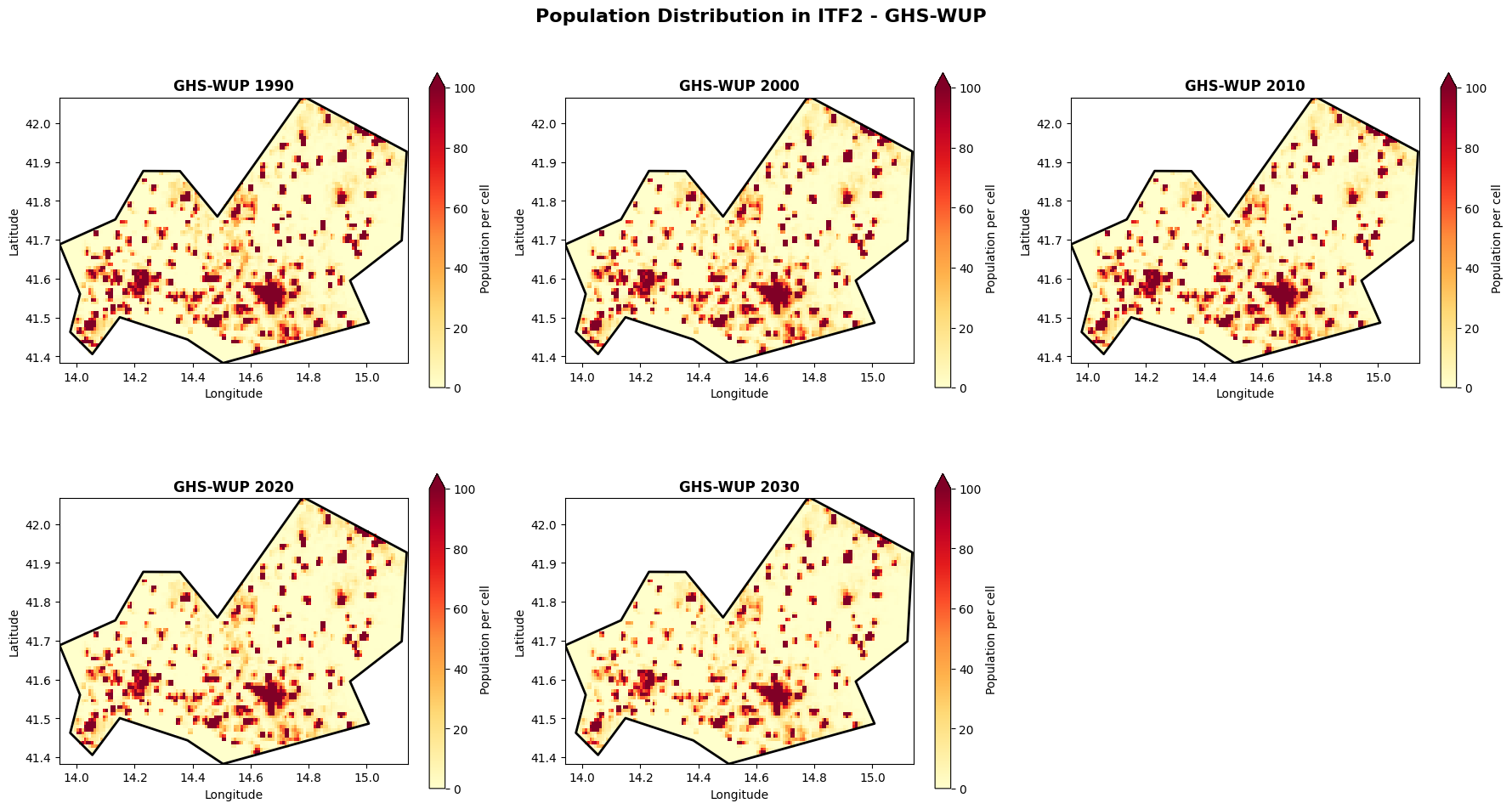

# Plot GHS-WUP for selected years
fig, axes = plt.subplots(2, 3, figsize=(18, 10))
axes = axes.flatten()

for idx, year in enumerate(selected_years_pop):
    if year in wup_data_dict:
        # Create mask for this specific year's coordinates
        mask_raw = admin_mask.mask(wup_data_dict[year].x, wup_data_dict[year].y)
        wup_mask = xr.DataArray(
            (~np.isnan(mask_raw.values)).astype(float),
            coords={'y': wup_data_dict[year].y, 'x': wup_data_dict[year].x},
            dims=['y', 'x']
        )

        masked_wup = wup_data_dict[year].where(wup_mask == 1)

        im = masked_wup.plot(
            ax=axes[idx],
            cmap='YlOrRd',
            add_colorbar=True,
            cbar_kwargs={'label': 'Population per cell', 'shrink': 0.8},
            vmin=0,
            vmax=100
        )

        axes[idx].set_title(f'GHS-WUP {year}', fontsize=12, fontweight='bold')
        axes[idx].set_xlabel('Longitude')
        axes[idx].set_ylabel('Latitude')
        sel_gdf.boundary.plot(ax=axes[idx], color='black', linewidth=2)

# Remove the last subplot if odd number
if len(selected_years_pop) < 6:
    fig.delaxes(axes[5])

plt.suptitle(f'Population Distribution in {admin_id} - GHS-WUP', fontsize=16, fontweight='bold', y=0.98)
plt.tight_layout()
plt.show()

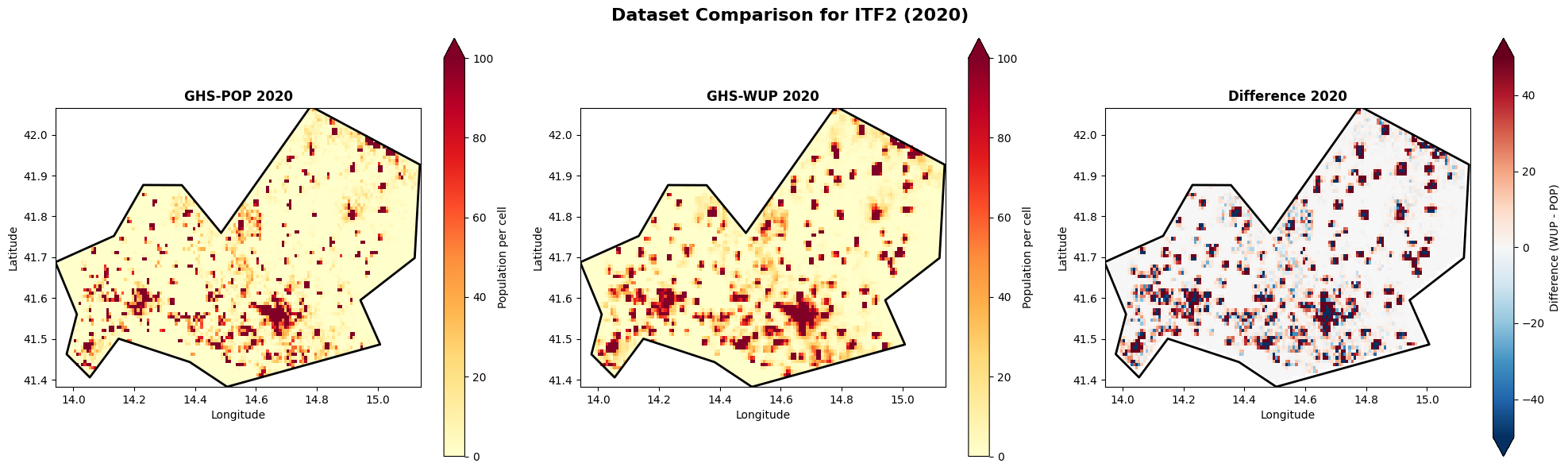

# Compare 2020 for both datasets
comparison_year = 2020

fig, axes = plt.subplots(1, 3, figsize=(20, 6))

# GHS-POP 2020
# Create mask for POP dataset
mask_pop_raw = admin_mask.mask(pop_data_dict[comparison_year].x, pop_data_dict[comparison_year].y)
masked_pop = pop_data_dict[comparison_year].where(~np.isnan(mask_pop_raw.values))

im1 = masked_pop.plot(
    ax=axes[0],
    cmap='YlOrRd',
    add_colorbar=True,
    cbar_kwargs={'label': 'Population per cell'},
    vmin=0,
    vmax=100
)
axes[0].set_title(f'GHS-POP {comparison_year}', fontsize=12, fontweight='bold')
axes[0].set_xlabel('Longitude')
axes[0].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[0], color='black', linewidth=2)

# GHS-WUP 2020
# Create mask for WUP dataset
mask_wup_raw = admin_mask.mask(wup_data_dict[comparison_year].x, wup_data_dict[comparison_year].y)
masked_wup = wup_data_dict[comparison_year].where(~np.isnan(mask_wup_raw.values))

im2 = masked_wup.plot(
    ax=axes[1],
    cmap='YlOrRd',
    add_colorbar=True,
    cbar_kwargs={'label': 'Population per cell'},
    vmin=0,
    vmax=100
)
axes[1].set_title(f'GHS-WUP {comparison_year}', fontsize=12, fontweight='bold')
axes[1].set_xlabel('Longitude')
axes[1].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[1], color='black', linewidth=2)

# Difference - ensure both are on same coordinates
# Interpolate WUP to POP coordinates if needed, or vice versa
try:
    # Try direct subtraction first
    difference = masked_wup - masked_pop
    # Check if result has any valid data
    if difference.isnull().all():
        # If all NaN, interpolate WUP to POP grid
        masked_wup_interp = masked_wup.interp_like(masked_pop)
        difference = masked_wup_interp - masked_pop
except:
    # If there's an error, try interpolation
    masked_wup_interp = masked_wup.interp_like(masked_pop)
    difference = masked_wup_interp - masked_pop

im3 = difference.plot(
    ax=axes[2],
    cmap='RdBu_r',
    add_colorbar=True,
    cbar_kwargs={'label': 'Difference (WUP - POP)'},
    center=0,
    vmin=-50,
    vmax=50

)
axes[2].set_title(f'Difference {comparison_year}', fontsize=12, fontweight='bold')
axes[2].set_xlabel('Longitude')
axes[2].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[2], color='black', linewidth=2)

plt.suptitle(f'Dataset Comparison for {admin_id} ({comparison_year})', fontsize=16, fontweight='bold')
plt.tight_layout()
plt.show()

# Load 2025 and 2100 from GHS-WUP
future_years = [2025, 2100]
wup_future_dict = {}

for year in future_years:
    matching_files = [f for f in ghs_wup_files if f"E{year}" in f.name]
    if matching_files:
        tif_file = matching_files[0]
        ds = rxr.open_rasterio(tif_file)
        # Clip to region
        ds_clipped = ds.sel(x=slice(lon_min, lon_max), y=slice(lat_max, lat_min))
        ds_clipped = ds_clipped.where(ds_clipped >= 0)  # Remove fill values
        wup_future_dict[year] = ds_clipped.squeeze("band", drop=True)
        print(f"Loaded GHS-WUP {year}: shape {ds_clipped.shape}")

print(f"\nLoaded {len(wup_future_dict)} years for future comparison")

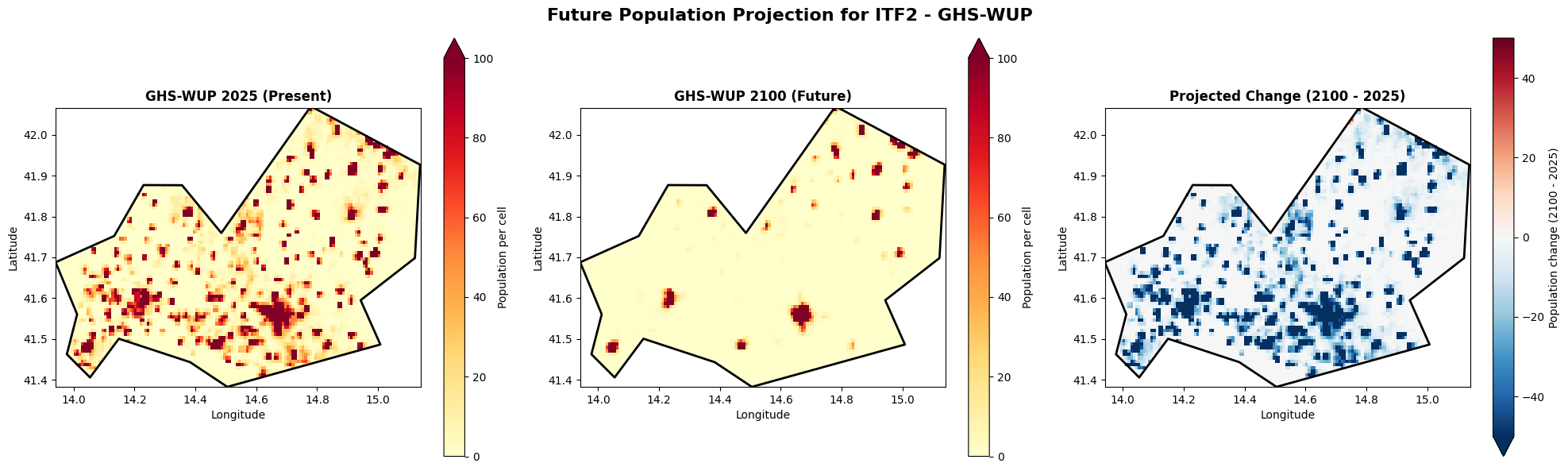

# Compare 2025 vs 2100
fig, axes = plt.subplots(1, 3, figsize=(20, 6))

# 2025 (Present)
mask_2025 = admin_mask.mask(wup_future_dict[2025].x, wup_future_dict[2025].y)
masked_2025 = wup_future_dict[2025].where(~np.isnan(mask_2025.values))

im1 = masked_2025.plot(
    ax=axes[0],
    cmap='YlOrRd',
    add_colorbar=True,
    cbar_kwargs={'label': 'Population per cell'},
    vmin=0,
    vmax=100
)
axes[0].set_title('GHS-WUP 2025 (Present)', fontsize=12, fontweight='bold')
axes[0].set_xlabel('Longitude')
axes[0].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[0], color='black', linewidth=2)

# 2100 (Future)
mask_2100 = admin_mask.mask(wup_future_dict[2100].x, wup_future_dict[2100].y)
masked_2100 = wup_future_dict[2100].where(~np.isnan(mask_2100.values))

im2 = masked_2100.plot(
    ax=axes[1],
    cmap='YlOrRd',
    add_colorbar=True,
    cbar_kwargs={'label': 'Population per cell'},
    vmin=0,
    vmax=100
)
axes[1].set_title('GHS-WUP 2100 (Future)', fontsize=12, fontweight='bold')
axes[1].set_xlabel('Longitude')
axes[1].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[1], color='black', linewidth=2)

# Change (2100 - 2025)
# Interpolate if needed
try:
    future_change = masked_2100 - masked_2025
    if future_change.isnull().all():
        masked_2100_interp = masked_2100.interp_like(masked_2025)
        future_change = masked_2100_interp - masked_2025
except:
    masked_2100_interp = masked_2100.interp_like(masked_2025)
    future_change = masked_2100_interp - masked_2025

im3 = future_change.plot(
    ax=axes[2],
    cmap='RdBu_r',
    add_colorbar=True,
    cbar_kwargs={'label': 'Population change (2100 - 2025)'},
    center=0,
    vmin=-50,
    vmax=50
)
axes[2].set_title('Projected Change (2100 - 2025)', fontsize=12, fontweight='bold')
axes[2].set_xlabel('Longitude')
axes[2].set_ylabel('Latitude')
sel_gdf.boundary.plot(ax=axes[2], color='black', linewidth=2)

plt.suptitle(f'Future Population Projection for {admin_id} - GHS-WUP', fontsize=16, fontweight='bold')
plt.tight_layout()
plt.show()

# Print summary statistics
print(f"\nPopulation change summary (2025 → 2100):")
total_2025 = masked_2025.sum().values
total_2100 = masked_2100.sum().values if future_change.isnull().all() == False else masked_2100_interp.sum().values
change = total_2100 - total_2025
percent_change = (change / total_2025) * 100

print(f"  2025 total: {total_2025:,.0f}")
print(f"  2100 total: {total_2100:,.0f}")
print(f"  Absolute change: {change:+,.0f}")
print(f"  Percent change: {percent_change:+.1f}%")
