People exposed to prolonged droughts

import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
import os
from pathlib import Path

# Configure plotting
plt.rcParams['figure.figsize'] = (12, 6)
plt.rcParams['font.size'] = 11

# Configuration
admin_id = 'EL64'

# Reference period (WMO standard: 1991-2020)
baseline_start = 1991
baseline_end = 2020

# Paths
data_dir = Path(f'../data/{admin_id}')

# Load preprocessed data
drought_reanalysis = data_dir / 'drought_hazard' / f'drought_duration_reanalysis_{admin_id}.csv'
drought_proj = data_dir / 'drought_hazard' / f'drought_duration_projections_{admin_id}.csv'
population_wup = data_dir / 'ghs_population' / f'population_ghs_wup_{admin_id}.csv'

print(f"Region: {admin_id} (Central Greece)")
print(f"\nData files:")
print(f"  Drought (reanalysis): {drought_reanalysis.name}")
print(f"  Drought (projections): {drought_proj.name}")
print(f"  Population: {population_wup.name}")

# Load drought reanalysis data
drought_hist_df = pd.read_csv(drought_reanalysis)
drought_hist_df['time'] = pd.to_datetime(drought_hist_df['time'])
drought_hist_df['year'] = drought_hist_df['time'].dt.year

# Load drought projection data
drought_proj_df = pd.read_csv(drought_proj)
drought_proj_df['time'] = pd.to_datetime(drought_proj_df['time'])
drought_proj_df['year'] = drought_proj_df['time'].dt.year

# Load population data (GHS-WUP: 1975-2100)
pop_df = pd.read_csv(population_wup)

# Fill gaps in population timeseries using persistence (forward fill)
# Create complete year range from drought data
all_years_hist = pd.DataFrame({'year': range(drought_hist_df['year'].min(), drought_hist_df['year'].max() + 1)})
all_years_proj = pd.DataFrame({'year': range(drought_proj_df['year'].min(), drought_proj_df['year'].max() + 1)})
all_years = pd.concat([all_years_hist, all_years_proj]).drop_duplicates().sort_values('year').reset_index(drop=True)

# Merge with population and forward fill missing values
pop_df_filled = all_years.merge(pop_df, on='year', how='left')
pop_df_filled['population'] = pop_df_filled['population'].ffill()

print(f"Drought reanalysis: {drought_hist_df['year'].min()}-{drought_hist_df['year'].max()}")
print(f"Drought projections: {drought_proj_df['year'].min()}-{drought_proj_df['year'].max()}")
print(f"Population (original): {int(pop_df['year'].min())}-{int(pop_df['year'].max())} ({len(pop_df)} time steps, 5-year intervals)")
print(f"Population (filled): {int(pop_df_filled['year'].min())}-{int(pop_df_filled['year'].max())} ({len(pop_df_filled)} time steps (years), filled by forward fill)")
print(f"\nClimate models: {drought_proj_df['model'].nunique()}")
print(f"Scenarios: {sorted(drought_proj_df['scenario'].unique())}")

# Use filled population data for all subsequent calculations
pop_df = pop_df_filled

# Merge historical drought with population data
hist_exposure = drought_hist_df[['year', 'dmd']].merge(pop_df_filled, on='year', how='inner')

# Calculate exposure (person-months of drought exposure per year)
hist_exposure['exposure'] = hist_exposure['dmd'] * hist_exposure['population']

print(f"Historical exposure data: {hist_exposure['year'].min()}-{hist_exposure['year'].max()}")
hist_exposure.head()

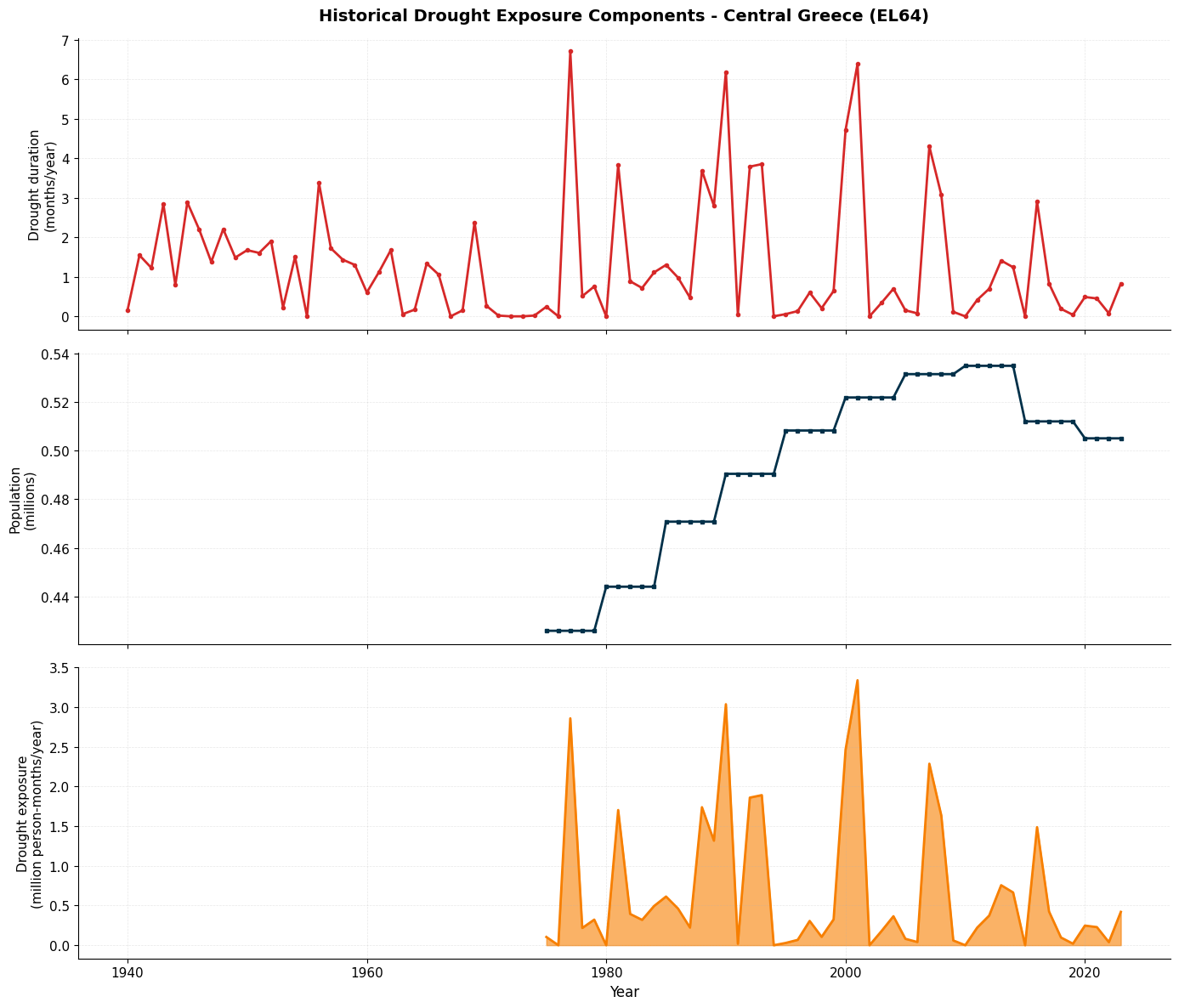

# Visualize historical exposure components
fig, axes = plt.subplots(3, 1, figsize=(14, 12), sharex=True)

# Panel 1: Drought Duration
axes[0].plot(hist_exposure['year'], hist_exposure['dmd'],
             color='#D62828', linewidth=2, marker='o', markersize=3)
axes[0].set_ylabel('Drought duration\n(months/year)', fontsize=11)
axes[0].set_title('Historical Drought Exposure Components - Central Greece (EL64)',
                  fontsize=14, fontweight='bold', pad=15)
axes[0].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[0].spines['top'].set_visible(False)
axes[0].spines['right'].set_visible(False)

# Panel 2: Population
axes[1].plot(hist_exposure['year'], hist_exposure['population']/1e6,
             color='#003049', linewidth=2, marker='s', markersize=3)
axes[1].set_ylabel('Population\n(millions)', fontsize=11)
axes[1].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[1].spines['top'].set_visible(False)
axes[1].spines['right'].set_visible(False)

# Panel 3: Drought Exposure
axes[2].fill_between(hist_exposure['year'], 0, hist_exposure['exposure']/1e6,
                     color='#F77F00', alpha=0.6)
axes[2].plot(hist_exposure['year'], hist_exposure['exposure']/1e6,
             color='#F77F00', linewidth=2)
axes[2].set_ylabel('Drought exposure\n(million person-months/year)', fontsize=11)
axes[2].set_xlabel('Year', fontsize=12)
axes[2].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[2].spines['top'].set_visible(False)
axes[2].spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

# Calculate baseline statistics
baseline_hist = hist_exposure[
    hist_exposure['year'].between(baseline_start, baseline_end)
]

print(f"\nHistorical baseline ({baseline_start}-{baseline_end}):")
print(f"  Average drought duration: {baseline_hist['dmd'].mean():.2f} months/year")
print(f"  Average population: {baseline_hist['population'].mean()/1e6:.2f} million")
print(f"  Average exposure: {baseline_hist['exposure'].mean()/1e6:.2f} million person-months/year")

# Prepare RCP4.5 projections
rcp45_df = drought_proj_df[drought_proj_df['scenario'] == 'RCP4_5'].copy()

# Merge with population for each model
rcp45_exposure = rcp45_df.merge(pop_df_filled, on='year', how='inner')
rcp45_exposure['exposure'] = rcp45_exposure['dmd'] * rcp45_exposure['population']

print(f"RCP4.5 projections: {rcp45_exposure['year'].min()}-{rcp45_exposure['year'].max()}")
print(f"Models: {rcp45_exposure['model'].nunique()}")

# Calculate multi-model statistics by year
rcp45_stats = rcp45_exposure.groupby('year').agg({
    'exposure': ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)],
    'dmd' : ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)]
}).reset_index()
rcp45_stats.columns = ['year', 'exposure_median', 'exposure_p17', 'exposure_p83', 'dmd_median', 'dmd_p17', 'dmd_p83']

rcp45_stats.head()

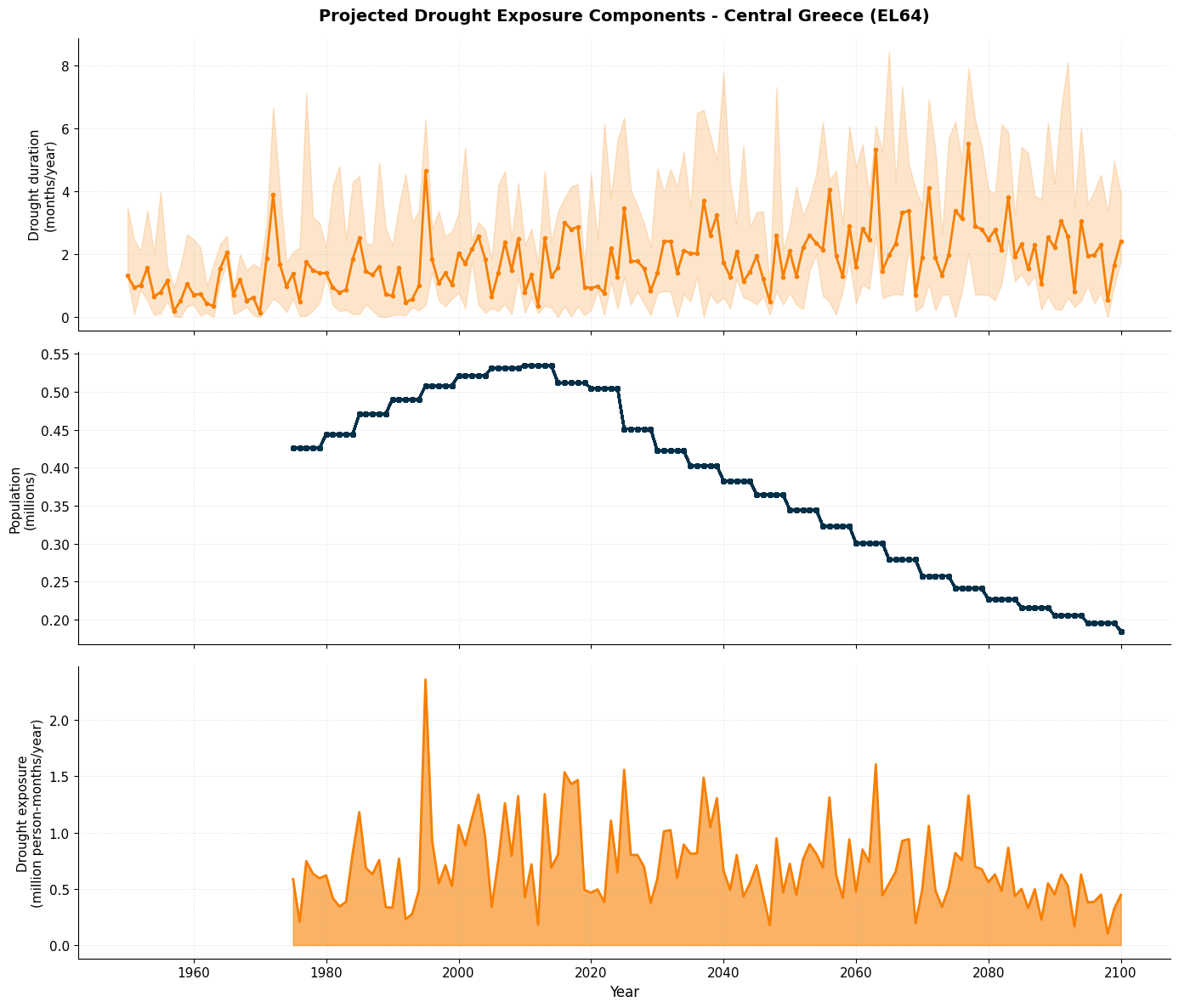

# Visualize projected exposure components
fig, axes = plt.subplots(3, 1, figsize=(14, 12), sharex=True)

# Panel 1: Drought Duration
axes[0].plot(rcp45_stats['year'], rcp45_stats['dmd_median'],
             color='#F77F00', linewidth=2, marker='o', markersize=3)
axes[0].set_ylabel('Drought duration\n(months/year)', fontsize=11)
axes[0].set_title('Projected Drought Exposure Components - Central Greece (EL64)',
                  fontsize=14, fontweight='bold', pad=15)
axes[0].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[0].spines['top'].set_visible(False)
axes[0].spines['right'].set_visible(False)
# Add uncertainty range
axes[0].fill_between(rcp45_stats['year'],
                rcp45_stats['dmd_p17'],
                rcp45_stats['dmd_p83'],
                color='#F77F00', alpha=0.2, label='RCP4.5 (17th-83rd percentile)')

# Panel 2: Population
axes[1].plot(rcp45_exposure['year'], rcp45_exposure['population']/1e6,
             color='#003049', linewidth=2, marker='s', markersize=3)
axes[1].set_ylabel('Population\n(millions)', fontsize=11)
axes[1].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[1].spines['top'].set_visible(False)
axes[1].spines['right'].set_visible(False)

# Panel 3: Drought Exposure
axes[2].fill_between(rcp45_stats['year'], 0, rcp45_stats['exposure_median']/1e6,
                     color='#F77F00', alpha=0.6)
axes[2].plot(rcp45_stats['year'], rcp45_stats['exposure_median']/1e6,
             color='#F77F00', linewidth=2)
axes[2].set_ylabel('Drought exposure\n(million person-months/year)', fontsize=11)
axes[2].set_xlabel('Year', fontsize=12)
axes[2].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[2].spines['top'].set_visible(False)
axes[2].spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

# Visualize RCP4.5 projections
fig, ax = plt.subplots(figsize=(14, 7))

# Plot historical exposure
ax.plot(hist_exposure['year'], hist_exposure['exposure']/1e6,
        color='black', linewidth=2.5, label='Historical (ERA5 + GHS-WUP)', alpha=0.8)

# Plot individual models (light)
for model in rcp45_exposure['model'].unique():
    model_data = rcp45_exposure[rcp45_exposure['model'] == model]
    ax.plot(model_data['year'], model_data['exposure']/1e6,
            color='#F77F00', linewidth=0.8, alpha=0.2)

# Plot multi-model median
ax.plot(rcp45_stats['year'], rcp45_stats['exposure_median']/1e6,
        color='#F77F00', linewidth=3, label='RCP4.5 (multi-model median)')

# Add uncertainty range
ax.fill_between(rcp45_stats['year'],
                rcp45_stats['exposure_p17']/1e6,
                rcp45_stats['exposure_p83']/1e6,
                color='#F77F00', alpha=0.2, label='RCP4.5 (17th-83rd percentile)')

# Mark transition from historical to projections
ax.axvline(2005, color='gray', linestyle=':', linewidth=2, alpha=0.6)

# Mark baseline period
ax.axvspan(baseline_start, baseline_end, color='gray', alpha=0.1, label=f'Baseline ({baseline_start}-{baseline_end})')

ax.set_xlabel('Year', fontsize=12)
ax.set_ylabel('Drought exposure (million person-months/year)', fontsize=12)
ax.set_title('Projected Drought Exposure: RCP4.5 Scenario - Central Greece (EL64)',
             fontsize=14, fontweight='bold')
ax.legend(loc='upper left', fontsize=10, frameon=True)
ax.grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)

plt.tight_layout()
plt.show()

# Prepare RCP8.5 projections
rcp85_df = drought_proj_df[drought_proj_df['scenario'] == 'RCP8_5'].copy()

# Merge with population
rcp85_exposure = rcp85_df.merge(pop_df_filled, on='year', how='inner')
rcp85_exposure['exposure'] = rcp85_exposure['dmd'] * rcp85_exposure['population']

# Calculate multi-model statistics
rcp85_stats = rcp85_exposure.groupby('year').agg({
    'exposure': ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)],
        'dmd' : ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)]
}).reset_index()
rcp85_stats.columns = ['year', 'exposure_median', 'exposure_p17', 'exposure_p83', 'dmd_median', 'dmd_p17', 'dmd_p83']

print(f"RCP8.5 projections: {rcp85_exposure['year'].min()}-{rcp85_exposure['year'].max()}")
print(f"Models: {rcp85_exposure['model'].nunique()}")

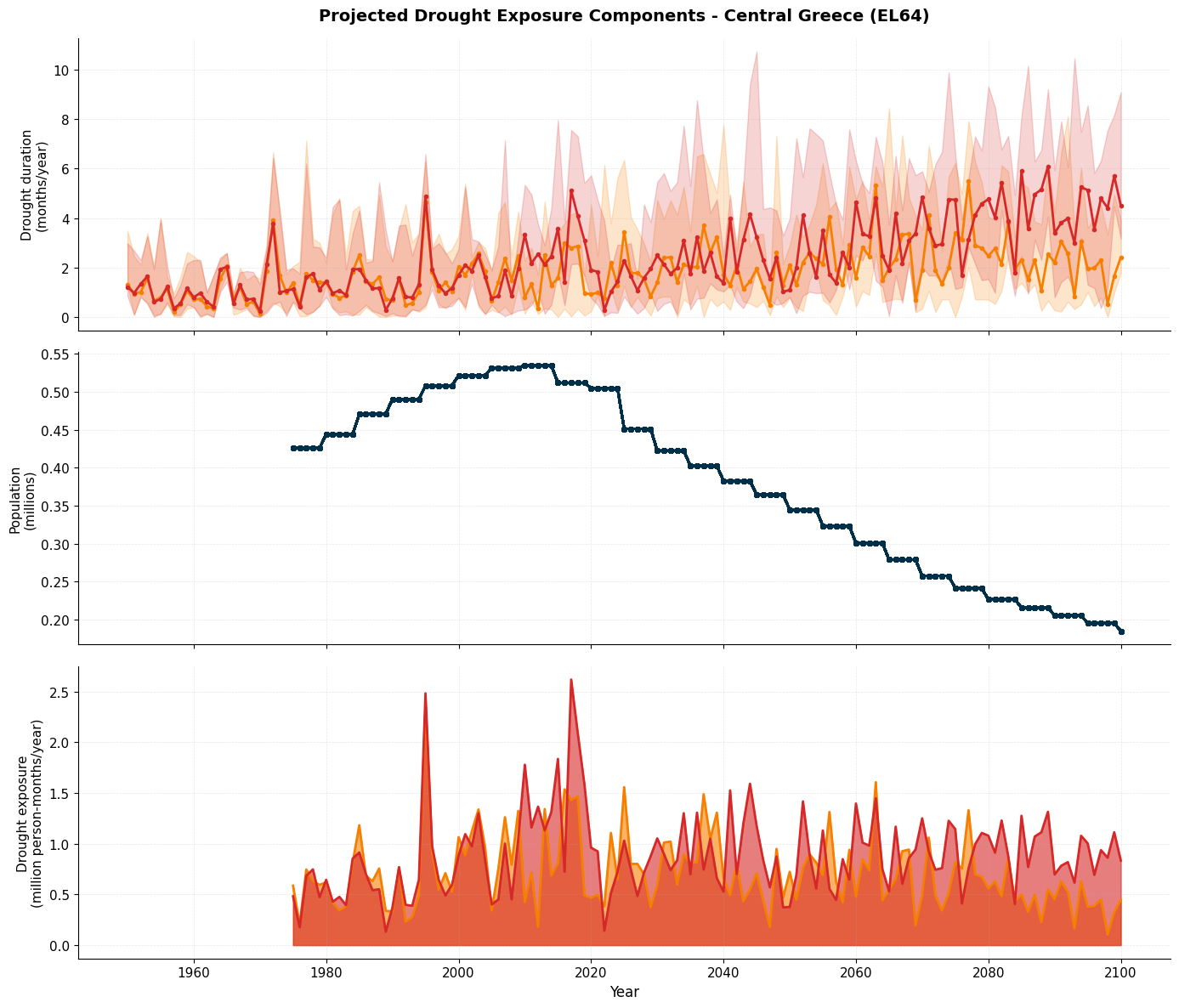

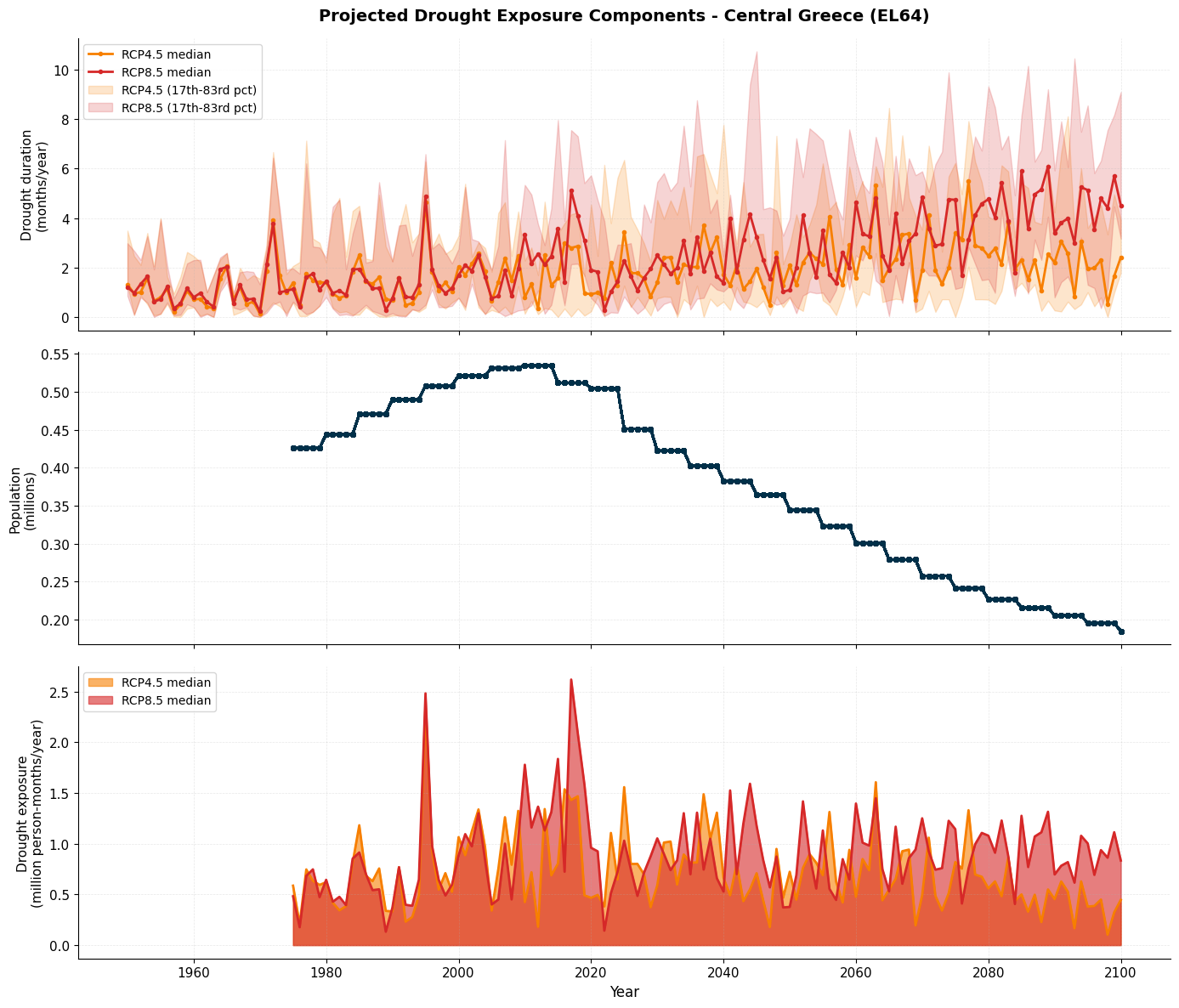

# Visualize projected exposure components
fig, axes = plt.subplots(3, 1, figsize=(14, 12), sharex=True)

# Panel 1: Drought Duration
axes[0].plot(rcp45_stats['year'], rcp45_stats['dmd_median'],
             color='#F77F00', linewidth=2, marker='o', markersize=3, label='RCP4.5 median')
axes[0].plot(rcp85_stats['year'], rcp85_stats['dmd_median'],
             color='#D62828', linewidth=2, marker='o', markersize=3, label='RCP8.5 median')
axes[0].set_ylabel('Drought duration\n(months/year)', fontsize=11)
axes[0].set_title('Projected Drought Exposure Components - Central Greece (EL64)',
                  fontsize=14, fontweight='bold', pad=15)
axes[0].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[0].spines['top'].set_visible(False)
axes[0].spines['right'].set_visible(False)
# Add uncertainty range
axes[0].fill_between(rcp45_stats['year'],
                rcp45_stats['dmd_p17'],
                rcp45_stats['dmd_p83'],
                color='#F77F00', alpha=0.2, label='RCP4.5 (17th-83rd pct)')
axes[0].fill_between(rcp85_stats['year'],
                rcp85_stats['dmd_p17'],
                rcp85_stats['dmd_p83'],
                color='#D62828', alpha=0.2, label='RCP8.5 (17th-83rd pct)')
axes[0].legend(loc='upper left', fontsize=10, frameon=True)

# Panel 2: Population
axes[1].plot(rcp45_exposure['year'], rcp45_exposure['population']/1e6,
             color='#003049', linewidth=2, marker='s', markersize=3)
axes[1].set_ylabel('Population\n(millions)', fontsize=11)
axes[1].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[1].spines['top'].set_visible(False)
axes[1].spines['right'].set_visible(False)

# Panel 3: Drought Exposure
axes[2].fill_between(rcp45_stats['year'], 0, rcp45_stats['exposure_median']/1e6,
                     color='#F77F00', alpha=0.6, label='RCP4.5 median')
axes[2].fill_between(rcp85_stats['year'], 0, rcp85_stats['exposure_median']/1e6,
                     color='#D62828', alpha=0.6, label='RCP8.5 median')
axes[2].plot(rcp45_stats['year'], rcp45_stats['exposure_median']/1e6,
             color='#F77F00', linewidth=2)
axes[2].plot(rcp85_stats['year'], rcp85_stats['exposure_median']/1e6,
             color='#D62828', linewidth=2)
axes[2].set_ylabel('Drought exposure\n(million person-months/year)', fontsize=11)
axes[2].set_xlabel('Year', fontsize=12)
axes[2].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[2].spines['top'].set_visible(False)
axes[2].spines['right'].set_visible(False)
axes[2].legend(loc='upper left', fontsize=10, frameon=True)

plt.tight_layout()
plt.show()

# Prepare RCP8.5 projections
rcp45_df_rm = drought_proj_df[drought_proj_df['scenario'] == 'RCP4_5'].copy()

# Calculate rolling mean for drought duration (3-year window) to smooth projections
window=30
rcp45_df_rm['dmd'] = rcp45_df_rm.groupby('model')['dmd'].transform(lambda x: x.rolling(window=window, center=True, min_periods=1).mean())

# Merge with population
rcp45_exposure_rm = rcp45_df_rm.merge(pop_df_filled, on='year', how='inner')
rcp45_exposure_rm['exposure'] = rcp45_exposure_rm['dmd'] * rcp45_exposure_rm['population']

# Calculate multi-model statistics
rcp45_stats_rm = rcp45_exposure_rm.groupby('year').agg({
    'exposure': ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)],
        'dmd' : ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)]
}).reset_index()
rcp45_stats_rm.columns = ['year', 'exposure_median', 'exposure_p17', 'exposure_p83', 'dmd_median', 'dmd_p17', 'dmd_p83']

print(f"RCP4.5 projections: {rcp45_exposure_rm['year'].min()}-{rcp45_exposure_rm['year'].max()}")
print(f"Models: {rcp45_exposure_rm['model'].nunique()}")


# Prepare RCP8.5 projections
rcp85_df_rm = drought_proj_df[drought_proj_df['scenario'] == 'RCP8_5'].copy()

# Calculate rolling mean for drought duration (3-year window) to smooth projections
window=30
rcp85_df_rm['dmd'] = rcp85_df_rm.groupby('model')['dmd'].transform(lambda x: x.rolling(window=window, center=True, min_periods=1).mean())

# Merge with population
rcp85_exposure_rm = rcp85_df_rm.merge(pop_df_filled, on='year', how='inner')
rcp85_exposure_rm['exposure'] = rcp85_exposure_rm['dmd'] * rcp85_exposure_rm['population']

# Calculate multi-model statistics
rcp85_stats_rm = rcp85_exposure_rm.groupby('year').agg({
    'exposure': ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)],
        'dmd' : ['median', lambda x: np.percentile(x, 17), lambda x: np.percentile(x, 83)]
}).reset_index()
rcp85_stats_rm.columns = ['year', 'exposure_median', 'exposure_p17', 'exposure_p83', 'dmd_median', 'dmd_p17', 'dmd_p83']

print(f"RCP8.5 projections: {rcp85_exposure_rm['year'].min()}-{rcp85_exposure_rm['year'].max()}")
print(f"Models: {rcp85_exposure_rm['model'].nunique()}")

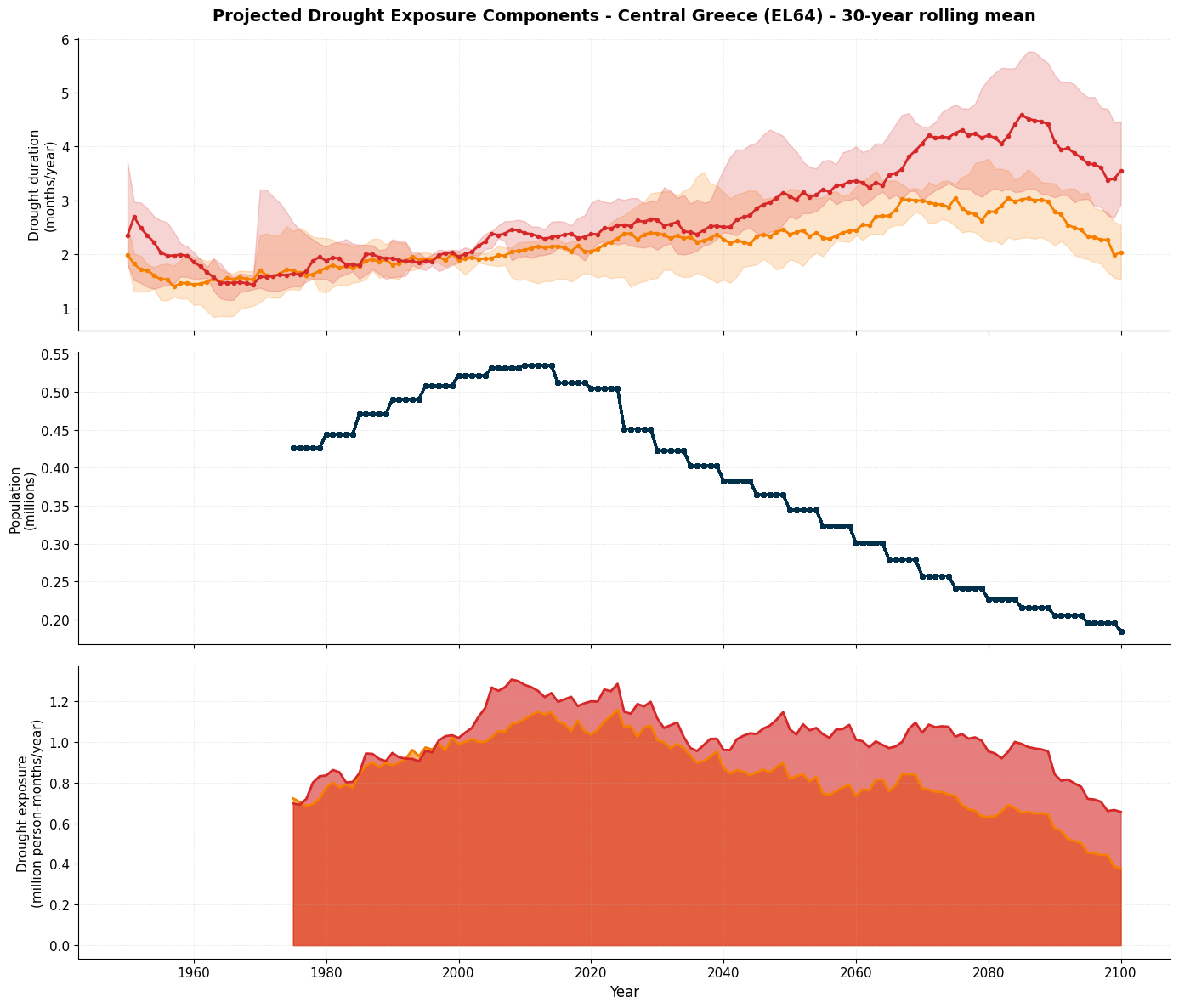

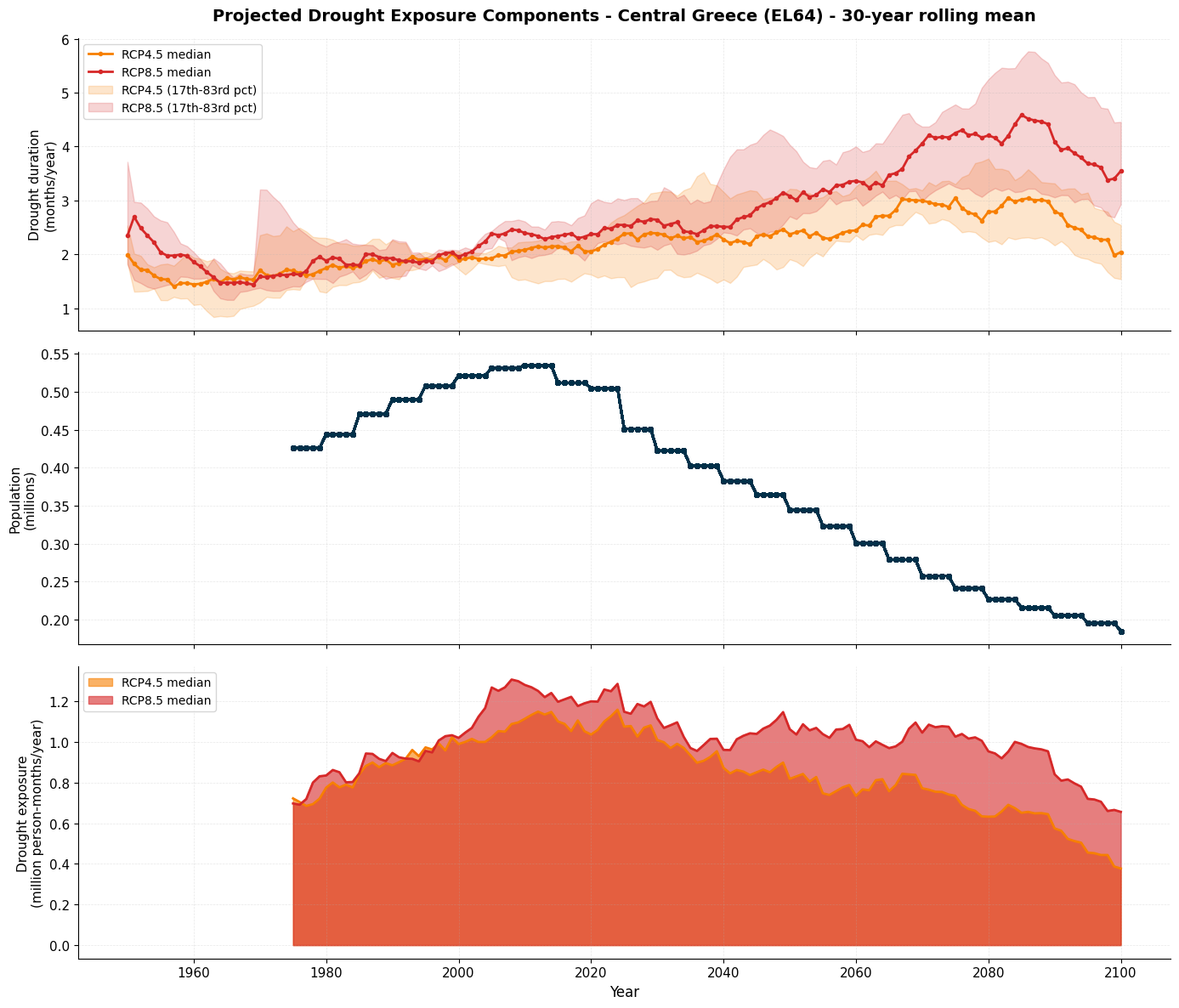

# Visualize projected exposure components
fig, axes = plt.subplots(3, 1, figsize=(14, 12), sharex=True)

# Panel 1: Drought Duration
axes[0].plot(rcp45_stats_rm['year'], rcp45_stats_rm['dmd_median'],
             color='#F77F00', linewidth=2, marker='o', markersize=3, label='RCP4.5 median')
axes[0].plot(rcp85_stats_rm['year'], rcp85_stats_rm['dmd_median'],
             color='#D62828', linewidth=2, marker='o', markersize=3, label='RCP8.5 median')
axes[0].set_ylabel('Drought duration\n(months/year)', fontsize=11)
axes[0].set_title('Projected Drought Exposure Components - Central Greece (EL64) - 30-year rolling mean',
                  fontsize=14, fontweight='bold', pad=15)
axes[0].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[0].spines['top'].set_visible(False)
axes[0].spines['right'].set_visible(False)
# Add uncertainty range
axes[0].fill_between(rcp45_stats['year'],
                rcp45_stats_rm['dmd_p17'],
                rcp45_stats_rm['dmd_p83'],
                color='#F77F00', alpha=0.2, label='RCP4.5 (17th-83rd pct)')
axes[0].fill_between(rcp85_stats['year'],
                rcp85_stats_rm['dmd_p17'],
                rcp85_stats_rm['dmd_p83'],
                color='#D62828', alpha=0.2, label='RCP8.5 (17th-83rd pct)')
axes[0].legend(loc='upper left', fontsize=10, frameon=True)

# Panel 2: Population
axes[1].plot(rcp45_exposure_rm['year'], rcp45_exposure_rm['population']/1e6,
             color='#003049', linewidth=2, marker='s', markersize=3)
axes[1].set_ylabel('Population\n(millions)', fontsize=11)
axes[1].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[1].spines['top'].set_visible(False)
axes[1].spines['right'].set_visible(False)

# Panel 3: Drought Exposure
axes[2].fill_between(rcp45_stats_rm['year'], 0, rcp45_stats_rm['exposure_median']/1e6,
                     color='#F77F00', alpha=0.6, label='RCP4.5 median')
axes[2].fill_between(rcp85_stats_rm['year'], 0, rcp85_stats_rm['exposure_median']/1e6,
                     color='#D62828', alpha=0.6, label='RCP8.5 median')
axes[2].plot(rcp45_stats_rm['year'], rcp45_stats_rm['exposure_median']/1e6,
             color='#F77F00', linewidth=2)
axes[2].plot(rcp85_stats_rm['year'], rcp85_stats_rm['exposure_median']/1e6,
             color='#D62828', linewidth=2)
axes[2].set_ylabel('Drought exposure\n(million person-months/year)', fontsize=11)
axes[2].set_xlabel('Year', fontsize=12)
axes[2].grid(True, alpha=0.3, linestyle='--', linewidth=0.5)
axes[2].spines['top'].set_visible(False)
axes[2].spines['right'].set_visible(False)
axes[2].legend(loc='upper left', fontsize=10, frameon=True)

plt.tight_layout()
plt.show()

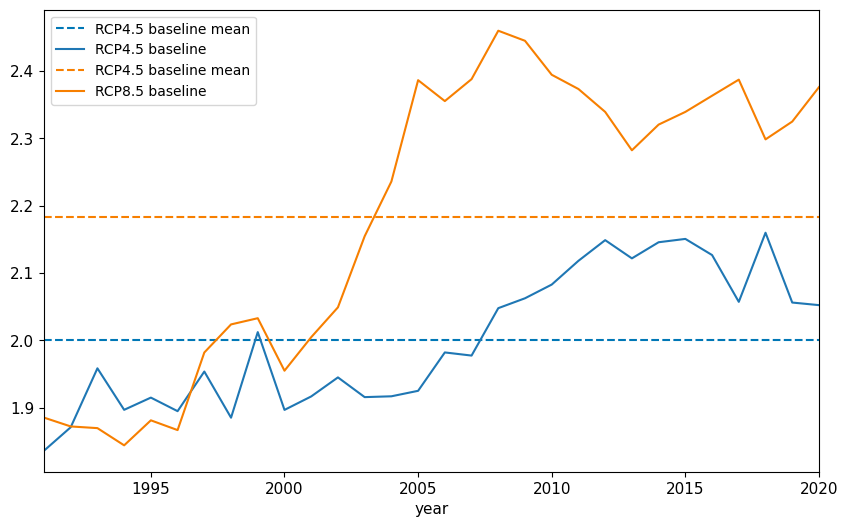

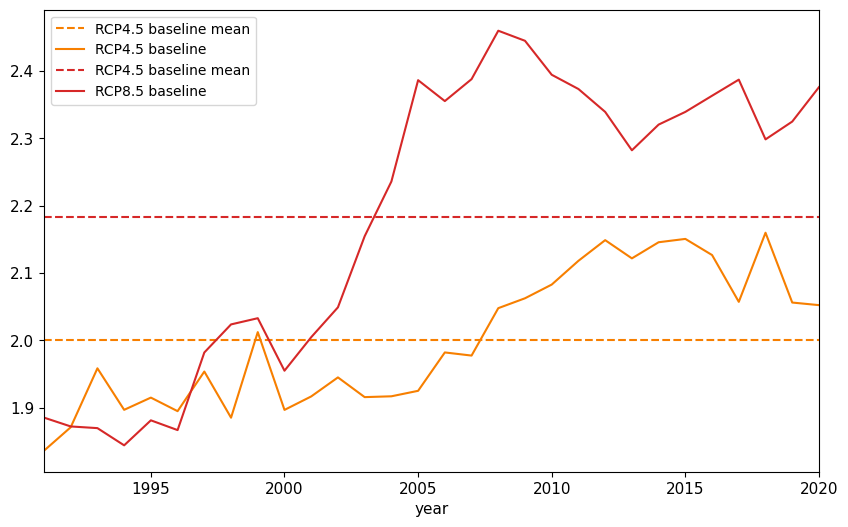

# Calculate anomalies relative to baseline of RCPs
baseline_rcp45 = rcp45_stats_rm[rcp45_stats_rm['year'].between(baseline_start, baseline_end)]
baseline_rcp85 = rcp85_stats_rm[rcp85_stats_rm['year'].between(baseline_start, baseline_end)]
baseline_rcp45_dmd = baseline_rcp45['dmd_median'].mean()
baseline_rcp85_dmd = baseline_rcp85['dmd_median'].mean()
baseline_population = pop_df_filled[pop_df_filled['year'].between(baseline_start, baseline_end)]['population'].mean()
baseline_rcp45_exposure = baseline_rcp45['exposure_median'].mean()
baseline_rcp85_exposure = baseline_rcp85['exposure_median'].mean()

figure, ax = plt.subplots(figsize=(10, 6))
ax.hlines(baseline_rcp45_dmd, xmin=baseline_start, xmax=baseline_end, color='#F77F00', linestyle='--', label='RCP4.5 baseline mean')
baseline_rcp45.plot(x='year', y='dmd_median', label='RCP4.5 baseline', ax=ax, color='#F77F00')
ax.hlines(baseline_rcp85_dmd, xmin=baseline_start, xmax=baseline_end, color='#D62828', linestyle='--', label='RCP4.5 baseline mean')
baseline_rcp85.plot(x='year', y='dmd_median', label='RCP8.5 baseline', ax=ax, color='#D62828')
ax.set_xlim(1991, 2020)
legend = ax.legend(loc='upper left', fontsize=10, frameon=True)

# Compute per-model change factors (relative to 1991-2020 baseline) for boxplot
period_order = ['Near-term', 'Mid-term', 'Long-term']


period_info = [
    ('2071-01-01', '2099-12-31', 'Long-term 2071-2100', 0.97),
    ('2041-01-01', '2069-12-31', 'Mid-term 2041-2070', 0.92),
    ('2021-01-01', '2049-12-31', 'Near-term 2021-2050', 0.87)
]
factor_periods = {
    'Near-term': (2021, 2050),
    'Mid-term':  (2041, 2070),
    'Long-term': (2071, 2100),
}

# Baseline: per-model mean dmd over 1991-2020 (averaged across scenarios)
baseline_dmd_models = (
    drought_proj_df[drought_proj_df['year'].between(baseline_start, baseline_end)]
    .groupby(['model', 'scenario'])['dmd'].mean()
    .reset_index()
    .groupby('model')['dmd'].mean()
    .reset_index()
    .rename(columns={'dmd': 'baseline_dmd'})
)

baseline_pop_median = pop_df[
    pop_df['year'].between(baseline_start, baseline_end)
]['population'].median()

period_results = {}

for period_name, (start, end) in factor_periods.items():
    period_pop_median = pop_df[pop_df['year'].between(start, end)]['population'].median()
    population_factor = np.array([period_pop_median / baseline_pop_median])

    hazard_rcp45, hazard_rcp85 = [], []
    exposure_rcp45, exposure_rcp85 = [], []

    for scenario, h_list, e_list in [
        ('RCP4_5', hazard_rcp45, exposure_rcp45),
        ('RCP8_5', hazard_rcp85, exposure_rcp85),
    ]:
        period_dmd = (
            drought_proj_df[
                drought_proj_df['year'].between(start, end) &
                (drought_proj_df['scenario'] == scenario)
            ]
            .groupby('model')['dmd'].mean()
            .reset_index()
            .rename(columns={'dmd': 'period_dmd'})
        )
        m = period_dmd.merge(baseline_dmd_models, on='model')
        m['hazard_factor']   = m['period_dmd'] / m['baseline_dmd']
        m['exposure_factor'] = (m['period_dmd'] * period_pop_median) / (m['baseline_dmd'] * baseline_pop_median)

        h_list.extend(m['hazard_factor'].values)
        e_list.extend(m['exposure_factor'].values)

    period_results[period_name] = {
        'population_factor': population_factor,
        'hazard_rcp45':      np.array(hazard_rcp45),
        'hazard_rcp85':      np.array(hazard_rcp85),
        'exposure_rcp45':    np.array(exposure_rcp45),
        'exposure_rcp85':    np.array(exposure_rcp85),
    }

print("Period results computed:")
for period_name, res in period_results.items():
    print(f"  {period_name}:")
    print(f"    Population factor:        {res['population_factor'][0]:.3f}")
    print(f"    Hazard RCP4.5 (median):   {np.median(res['hazard_rcp45']):.3f}")
    print(f"    Hazard RCP8.5 (median):   {np.median(res['hazard_rcp85']):.3f}")
    print(f"    Exposure RCP4.5 (median): {np.median(res['exposure_rcp45']):.3f}")
    print(f"    Exposure RCP8.5 (median): {np.median(res['exposure_rcp85']):.3f}")

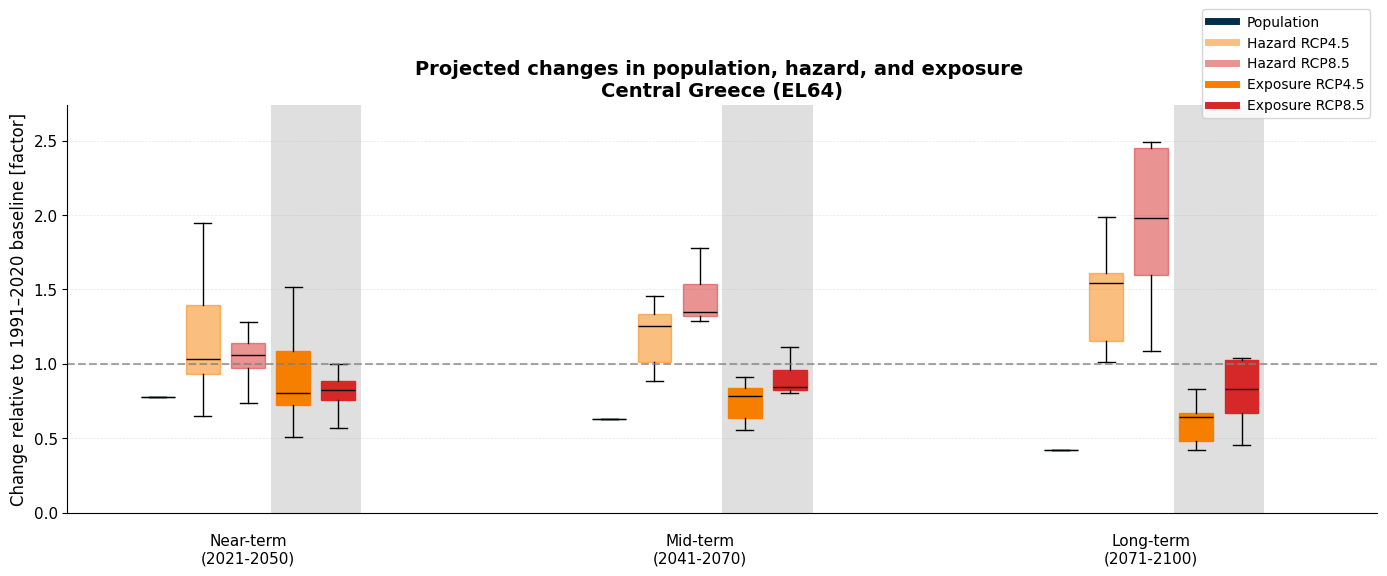

# Extended time-series factor boxplots: add exposure factors (RCP4.5 and RCP8.5)
# Population, Hazard RCP4.5, Hazard RCP8.5, Exposure RCP4.5, Exposure RCP8.5

data_to_plot_exp = []
labels_exp = []
box_colors_exp = []

period_info = [
    ('2071-01-01', '2099-12-31', 'Long-term 2071-2100', 0.97),
    ('2041-01-01', '2069-12-31', 'Mid-term 2041-2070', 0.92),
    ('2021-01-01', '2049-12-31', 'Near-term 2021-2050', 0.87)
]

for period_name in period_order:

    res = period_results[period_name]

    data_to_plot_exp.extend([
        res['population_factor'],
        res['hazard_rcp45'],
        res['hazard_rcp85'],
        res['exposure_rcp45'],
        res['exposure_rcp85'],
    ])

    labels_exp.extend([
        f'{period_name}\nPopulation',
        f'{period_name}\nHazard RCP4.5',
        f'{period_name}\nHazard RCP8.5',
        f'{period_name}\nExposure RCP4.5',
        f'{period_name}\nExposure RCP8.5',
    ])

    # Colors: keep population and hazard colored, exposure with grey background

    box_colors_exp.extend([
        '#003049',      # population
        "#F77F00",      # hazard RCP4.5
        '#D62828',      # hazard RCP8.5
        '#F77F00',      # exposure RCP4.5 (grey background)
        '#D62828',      # exposure RCP8.5 (grey background)
    ])

fig, ax = plt.subplots(figsize=(14, 6))

x_positions = [1.1, 1.2, 1.3, 1.4, 1.5, 2.1, 2.2, 2.3, 2.4, 2.5, 3.1, 3.2, 3.3, 3.4, 3.5]
# grey highlighted backgrounds for exposure boxes
# near term: 1.4-1.5, mid term: 2.4-2.5, long term: 3.4-3.5
for x_start in [1.35, 2.35, 3.35]:
    left, bottom, width, height = (x_start, -1, 0.2, 5)
    rect = plt.Rectangle((left, bottom), width, height,
                         facecolor="grey", alpha=0.25)
    ax.add_patch(rect)

bp_exp = ax.boxplot(
    data_to_plot_exp,
    tick_labels=None,
    patch_artist=True,
    widths=0.075,
    showfliers=False,
    boxprops=dict(linewidth=1.0),
    medianprops=dict(color='black', linewidth=1.0),
    whiskerprops=dict(linewidth=1.0),
    capprops=dict(linewidth=1.0),
    positions=x_positions
)
ax.set_xlim(0.9, 3.8)
ax.set_ylim(0, max([max(d) for d in data_to_plot_exp]) * 1.1)
ii=0
for patch, color in zip(bp_exp['boxes'], box_colors_exp):
    patch.set_facecolor(color)
    # use different alpha for exposure boxes to make them look like they are on top of the grey background
    patch.set_alpha(1) if ii in [3, 4, 8, 9, 13, 14] else patch.set_alpha(0.5)
    #patch.set_alpha(0.7)
    patch.set_edgecolor(color)
    ii += 1


# Reference line: no change
ax.axhline(1.0, color='gray', linestyle='--', linewidth=1.5, alpha=0.7)
ax.set_ylabel('Change relative to 1991–2020 baseline [factor]', fontsize=12)
ax.set_title(
    'Projected changes in population, hazard, and exposure \nCentral Greece (EL64)',
    fontsize=14,
    fontweight='bold',
)

ax.grid(True, axis='y', alpha=0.3, linestyle='--', linewidth=0.5)
ax.spines['top'].set_visible(False)
ax.spines['right'].set_visible(False)
# add a legend instead of xticklabels
legend_elements = [
    plt.Line2D([0], [0], color='#003049', lw=5, label='Population'),
    plt.Line2D([0], [0], color='#F77F00', lw=5, alpha=0.5, label='Hazard RCP4.5'),
    plt.Line2D([0], [0], color='#D62828', lw=5, alpha=0.5, label='Hazard RCP8.5'),
    plt.Line2D([0], [0], color='#F77F00', lw=5, alpha=1, label='Exposure RCP4.5'),
    plt.Line2D([0], [0], color='#D62828', lw=5, alpha=1, label='Exposure RCP8.5'),
]
ax.legend(handles=legend_elements, loc='center right', bbox_to_anchor=(1, 1.1), fontsize=10, frameon=True)
# remove x-axis ticks and labels
ax.set_xticks([])
# place x-axis labels manually with rotation at the center of each group just entitled "near-term", "mid-term", "long-term"
ax.text(1.3, -0.25, 'Near-term\n(2021-2050)', ha='center', va='center', fontsize=11)
ax.text(2.3, -0.25, 'Mid-term\n(2041-2070)', ha='center', va='center', fontsize=11)
ax.text(3.3, -0.25, 'Long-term\n(2071-2100)', ha='center', va='center', fontsize=11)
#plt.setp(ax.get_xticklabels(), rotation=25, ha='right')

plt.tight_layout()
plt.show()

# Calculate baseline exposure (1991-2020) from climate models
baseline_models = drought_proj_df[
    drought_proj_df['year'].between(baseline_start, baseline_end)
].groupby(['model', 'scenario'])[['year', 'dmd']].median().reset_index()

baseline_pop = pop_df[
    pop_df['year'].between(baseline_start, baseline_end)
]['population'].median()

baseline_models['exposure'] = baseline_models['dmd'] * baseline_pop

# Calculate end-of-century exposure (2071-2100)
eoc_models = drought_proj_df[
    drought_proj_df['year'].between(2071, 2100)
].groupby(['model', 'scenario'])[['year', 'dmd']].median().reset_index()

eoc_pop = pop_df[
    pop_df['year'].between(2071, 2100)
]['population'].median()

eoc_models['exposure'] = eoc_models['dmd'] * eoc_pop

# Merge and calculate changes
changes = eoc_models.merge(baseline_models, on=['model', 'scenario'], suffixes=('_eoc', '_baseline'))
changes['exposure_change'] = changes['exposure_eoc'] - changes['exposure_baseline']
changes['exposure_change_pct'] = (changes['exposure_change'] / changes['exposure_baseline']) * 100

# Summarize by scenario
print("="*80)
print(f"DROUGHT EXPOSURE PROJECTIONS: END-OF-CENTURY (2071-2100)")
print(f"Baseline period: {baseline_start}-{baseline_end}")
print("="*80)

print(f"\nBaseline ({baseline_start}-{baseline_end}):")
print(f"  Population: {baseline_pop/1e6:.2f} million")
baseline_exp = baseline_models.groupby('scenario')['exposure'].median().mean()
print(f"  Drought exposure: {baseline_exp/1e6:.2f} million person-months/year")

print(f"\nEnd-of-century (2071-2100):")
print(f"  Projected population: {eoc_pop/1e6:.2f} million")

for scenario in ['RCP4_5', 'RCP8_5']:
    scenario_changes = changes[changes['scenario'] == scenario]

    exp_median = scenario_changes['exposure_eoc'].median()
    exp_p17 = scenario_changes['exposure_eoc'].quantile(0.17)
    exp_p83 = scenario_changes['exposure_eoc'].quantile(0.83)

    change_median = scenario_changes['exposure_change'].median()
    change_pct_median = scenario_changes['exposure_change_pct'].median()

    n_increase = (scenario_changes['exposure_change'] > 0).sum()
    n_total = len(scenario_changes)

    print(f"\n  {scenario.replace('_', '.')}:")
    print(f"    Median exposure: {exp_median/1e6:.2f} million person-months/year")
    print(f"    Uncertainty range: {exp_p17/1e6:.2f} - {exp_p83/1e6:.2f} million person-months/year")
    print(f"    Change from baseline: {change_median/1e6:+.2f} million person-months/year ({change_pct_median:+.1f}%)")
    print(f"    Model agreement: {n_increase}/{n_total} models show increase")

print("\n" + "="*80)

# Configuration: Define 30-year periods and thresholds
period_length = 30  # years per period
thresholds = [10, 15, 20]  # additional drought months per 30-year period

# Define analysis periods
periods = {
    'Baseline': (1991, 2020),
    'Near-term': (2021, 2050),
    'Mid-term': (2041, 2070),
    'Long-term': (2071, 2100)
}

print(f"Configuration:")
print(f"  Period length: {period_length} years")
print(f"  Thresholds: {thresholds} additional drought months per {period_length}-year period")
print(f"\nAnalysis periods:")
for name, (start, end) in periods.items():
    print(f"  {name}: {start}-{end}")

# Calculate cumulative drought months for each 30-year period
def calculate_period_drought_exposure(drought_df, pop_df, periods, thresholds):
    """Calculate population exposed to drought increases per 30-year period.

    Parameters:
    -----------
    drought_df : DataFrame
        Drought projection data
    pop_df : DataFrame
        Population data
    periods : dict
        Dictionary of period names and (start, end) year tuples
    thresholds : list
        List of threshold values for drought month increases

    Returns:
    --------
    dict : Results for each threshold containing exposure statistics by period and scenario
    """

    # Calculate baseline (1991-2020) cumulative drought for each model
    # Note: Take mean across scenarios for historical period (should be identical)
    baseline_start, baseline_end = periods['Baseline']
    baseline_df = drought_df[
        drought_df['year'].between(baseline_start, baseline_end)
    ].groupby(['model', 'scenario']).agg({
        'dmd': 'sum'  # Total drought months over 30 years
    }).reset_index()
    # Average across scenarios (historical period should be same for both RCPs)
    baseline_df = baseline_df.groupby('model')['dmd'].mean().reset_index()
    baseline_df.rename(columns={'dmd': 'baseline_total'}, inplace=True)

    print(f"Baseline cumulative drought ({baseline_start}-{baseline_end}):")
    print(f"  Mean across models: {baseline_df['baseline_total'].mean():.1f} months per {period_length} years")
    print(f"  Range: {baseline_df['baseline_total'].min():.1f} - {baseline_df['baseline_total'].max():.1f} months")
    print(f"  Average per year: {baseline_df['baseline_total'].mean()/period_length:.2f} months/year")

    # Calculate cumulative drought for each future period
    results = {threshold: [] for threshold in thresholds}

    for period_name, (start, end) in periods.items():
        if period_name == 'Baseline':
            continue

        # Calculate total drought months for this period
        period_df = drought_df[
            drought_df['year'].between(start, end)
        ].groupby(['model', 'scenario']).agg({
            'dmd': 'sum'
        }).reset_index()
        period_df.rename(columns={'dmd': 'period_total'}, inplace=True)

        # Merge with baseline (baseline is same for all scenarios)
        merged = period_df.merge(baseline_df[['model', 'baseline_total']],
                                 on='model')
        merged['drought_increase'] = merged['period_total'] - merged['baseline_total']

        # Get population for this period (median across years)
        period_pop = pop_df[pop_df['year'].between(start, end)]['population'].median()

        # For each threshold, calculate exposure
        for threshold in thresholds:
            # Models where drought increase exceeds threshold
            for scenario in merged['scenario'].unique():
                scenario_data = merged[merged['scenario'] == scenario]

                # Count how many models exceed threshold
                exceeds = scenario_data['drought_increase'] >= threshold

                # Population exposed (if any model shows exceedance, all population is at risk)
                # We'll calculate the fraction of models that show exceedance
                exposed_models = exceeds.sum()
                total_models = len(scenario_data)

                # Store results
                results[threshold].append({
                    'period': period_name,
                    'scenario': scenario,
                    'period_years': f'{start}-{end}',
                    'population': period_pop,
                    'exposed_median': period_pop if exposed_models > total_models/2 else 0,
                    'exposed_min': 0 if exposed_models == 0 else period_pop,
                    'exposed_max': period_pop if exposed_models > 0 else 0,
                    'n_models_exceed': exposed_models,
                    'n_models_total': total_models,
                    'drought_increase_median': scenario_data['drought_increase'].median(),
                    'drought_increase_p17': scenario_data['drought_increase'].quantile(0.17),
                    'drought_increase_p83': scenario_data['drought_increase'].quantile(0.83)
                })

    # Convert to DataFrames
    for threshold in thresholds:
        results[threshold] = pd.DataFrame(results[threshold])

    return results

# Calculate exposure for all thresholds
threshold_results = calculate_period_drought_exposure(
    drought_proj_df, pop_df, periods, thresholds
)

print(f"\n✓ Threshold-based exposure calculated for {len(thresholds)} thresholds")

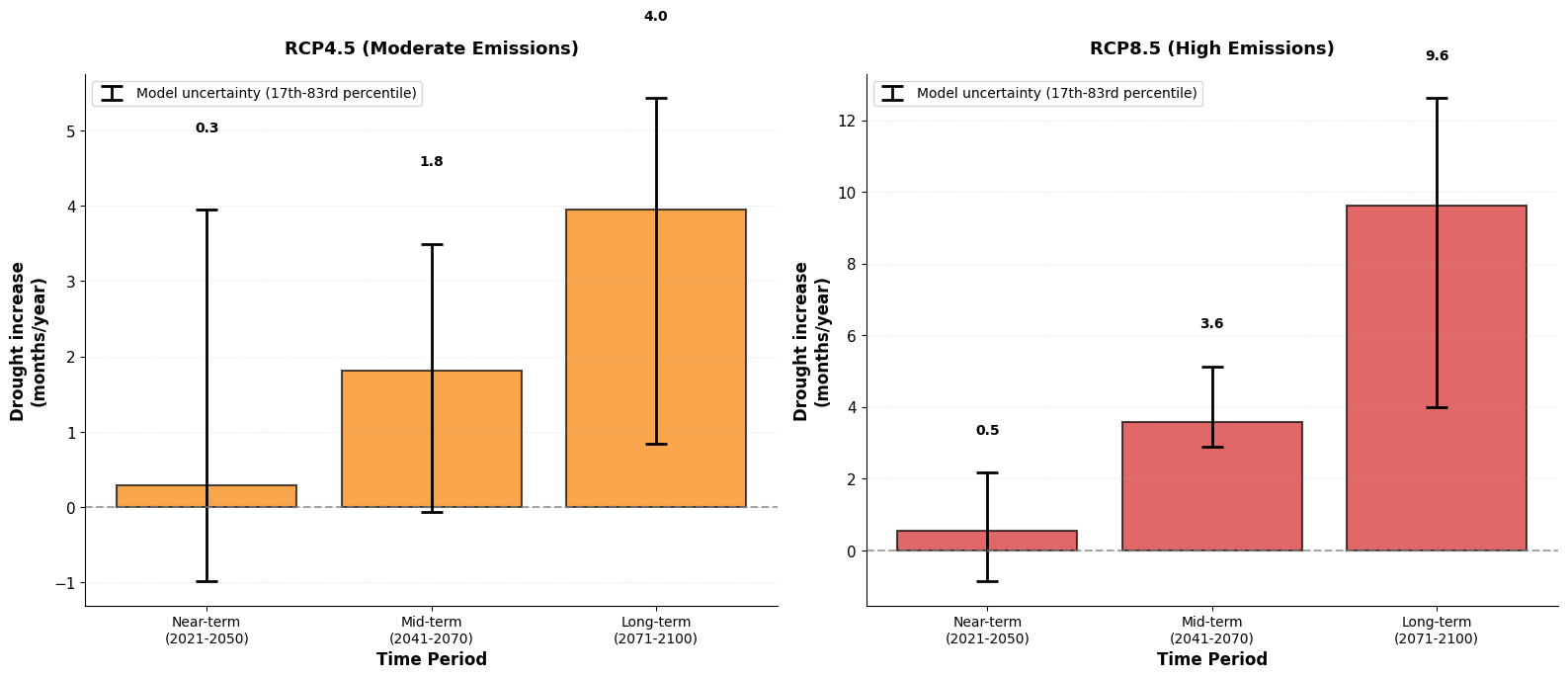

# Visualize drought increase by period with model uncertainty
fig, axes = plt.subplots(1, 2, figsize=(16, 7))

scenarios = ['RCP4_5', 'RCP8_5']
scenario_names = {'RCP4_5': 'RCP4.5 (Moderate Emissions)', 'RCP8_5': 'RCP8.5 (High Emissions)'}
scenario_colors = {'RCP4_5': '#F77F00', 'RCP8_5': '#D62828'}
period_order = ['Near-term', 'Mid-term', 'Long-term']

for idx, scenario in enumerate(scenarios):
    ax = axes[idx]

    # Use the first threshold for the main visualization
    threshold = thresholds[0]
    data = threshold_results[threshold]
    scenario_data = data[data['scenario'] == scenario]

    # Prepare data for plotting
    x_pos = np.arange(len(period_order))
    medians = []
    errors_lower = []
    errors_upper = []

    for period in period_order:
        period_data = scenario_data[scenario_data['period'] == period]
        if len(period_data) > 0:
            median = period_data['drought_increase_median'].values[0]
            p17 = period_data['drought_increase_p17'].values[0]
            p83 = period_data['drought_increase_p83'].values[0]

            # Convert to per-year values for clarity
            medians.append(median / period_length)
            errors_lower.append((median - p17) / period_length)
            errors_upper.append((p83 - median) / period_length)
        else:
            medians.append(0)
            errors_lower.append(0)
            errors_upper.append(0)

    # Create bar chart
    bars = ax.bar(x_pos, medians,
                   color=scenario_colors[scenario], alpha=0.7,
                   edgecolor='black', linewidth=1.5)

    # Add error bars
    ax.errorbar(x_pos, medians,
                yerr=[errors_lower, errors_upper],
                fmt='none', ecolor='black', capsize=8, capthick=2, linewidth=2,
                label='Model uncertainty (17th-83rd percentile)')

    # Add horizontal line at zero
    ax.axhline(0, color='gray', linestyle='--', linewidth=1.5, alpha=0.7)

    # Customize plot
    ax.set_xlabel('Time Period', fontsize=12, fontweight='bold')
    ax.set_ylabel('Drought increase\n(months/year)', fontsize=12, fontweight='bold')
    ax.set_title(scenario_names[scenario], fontsize=13, fontweight='bold', pad=15)
    ax.set_xticks(x_pos)
    ax.set_xticklabels([f'{p}\n({periods[p][0]}-{periods[p][1]})' for p in period_order], fontsize=10)
    ax.legend(loc='upper left', fontsize=10, frameon=True)
    ax.grid(True, alpha=0.3, linestyle='--', linewidth=0.5, axis='y')
    ax.spines['top'].set_visible(False)
    ax.spines['right'].set_visible(False)

    # Add value labels on bars
    for i, (bar, val) in enumerate(zip(bars, medians)):
        height = bar.get_height()
        ax.text(bar.get_x() + bar.get_width()/2., height + errors_upper[i] + 1,
                f'{val:.1f}', ha='center', va='bottom', fontweight='bold', fontsize=10)

plt.tight_layout()
plt.show()

# Population exposure when drought increases exceed thresholds
print("="*90)
print(f"POPULATION EXPOSURE TO DROUGHT INCREASES")
print(f"(Baseline: {periods['Baseline'][0]}-{periods['Baseline'][1]})")
print("="*90)

for scenario in scenarios:
    print(f"\n{scenario_names[scenario].upper()}")
    print("-"*90)

    for period in period_order:
        print(f"\n  {period} ({periods[period][0]}-{periods[period][1]}):")

        for threshold in thresholds:
            data = threshold_results[threshold]
            period_data = data[(data['scenario'] == scenario) & (data['period'] == period)]

            if len(period_data) > 0:
                pop = period_data['population'].values[0]
                n_exceed = period_data['n_models_exceed'].values[0]
                n_total = period_data['n_models_total'].values[0]
                pct_models = (n_exceed / n_total) * 100
                drought_increase = period_data['drought_increase_median'].values[0]

                # Estimate population at risk based on model agreement
                if pct_models > 66:  # Strong agreement (>2/3 models)
                    risk_level = "HIGH"
                    pop_at_risk = pop
                elif pct_models > 33:  # Moderate agreement
                    risk_level = "MODERATE"
                    pop_at_risk = pop * 0.5
                else:  # Weak agreement
                    risk_level = "LOW"
                    pop_at_risk = 0

                print(f"    Drought increase ≥ +{threshold} months:")
                print(f"      Model agreement: {n_exceed}/{n_total} models ({pct_models:.0f}%) → Risk: {risk_level}")
                print(f"      Population at risk: {pop_at_risk/1e6:.2f} million ({(pop_at_risk/pop)*100:.0f}% of {pop/1e6:.2f}M)")
                print(f"      Drought increase: {drought_increase:+.1f} months total ({drought_increase/period_length:+.2f} months/year)")

print("\n" + "="*90)
print("\n💡 Interpretation:")
print(f"   - Drought increases show CUMULATIVE additional months over {period_length} years,")
print(f"     relative to {periods['Baseline'][0]}-{periods['Baseline'][1]} baseline")
print(f"   - Example: '+60 months total' = +2.0 months/year average increase")
print(f"   - Population at risk depends on model agreement:")
print(f"     • HIGH (>66% models): All population exposed")
print(f"     • MODERATE (33-66% models): ~50% population exposed")
print(f"     • LOW (<33% models): Minimal exposure")
